VICI Edgelit module - 2 pin

SKU: LLV-2-pin

Edgelit lightbox module Vici
VICI Edgelit module
chevron_left
chevron_right
Edgelit lightbox module Vici
VICI Edgelit module
chevron_left
chevron_right
Select number of leds:
9x3w 6x3w 3x3w
add_shopping_cartRequest a quote
lock_personlogin person Request an account
Maximum reach 4000 mm
Mounting Edgelit
Number to daisy-chain Max. 8
Beam angle 39x13
We are here for you +31 (0)85 273 64 21
5 / 5
We score a 5 based on 7 reviews

What makes the VICI lightbox module unique?

High light output of 2700 lumens
Thanks to nine powerful 3 W Osram LEDs, the VICI produces an impressive 2700 lumens. This delivers strong, bright illumination – perfect for professional lightbox applications.

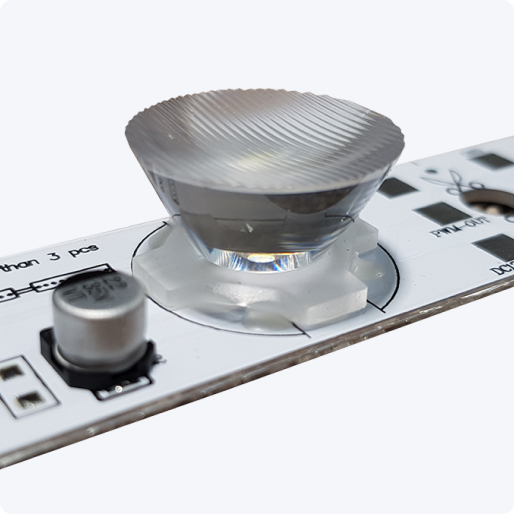

Uniform lighting through conical lens
The conical shape of the LED lenses ensures even light distribution, preventing shadows or dark edges – for a clean and uniform lighting result.

Flexible daisy-chaining and cut-to-length

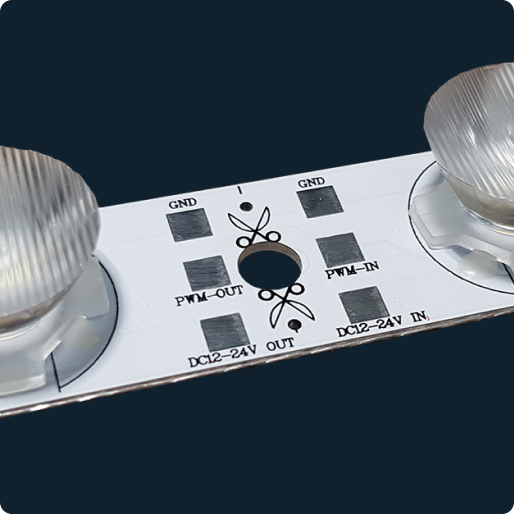

With male/female connectors, up to eight modules can be connected in series. In addition, the VICI can be shortened manually, allowing you to adjust the modules to different lightbox sizes.

  • check SUPER BRIGHT
  • check CONICAL LENS

Accessories, what do I need?

You can easily add the accessories to your cart.

Connection cables (75 cm / 150 cm, 2-pin or 3-pin):
For bridging a longer distance between the modules; compatible with VICI, UVAL and YONI.

Driver Lightbox Slim (75 W / 120 W) and/or Meanwell 240 W

Converts mains voltage to 24 V DC. Select the driver with the power output that matches the number of modules you are using.

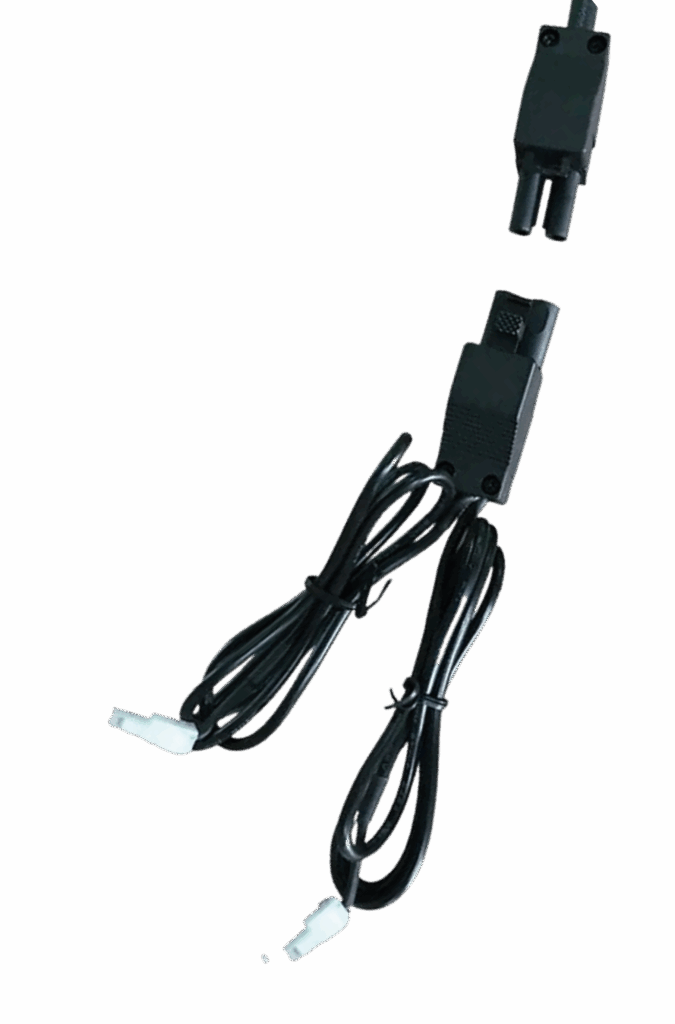

Driver connection cable duo:

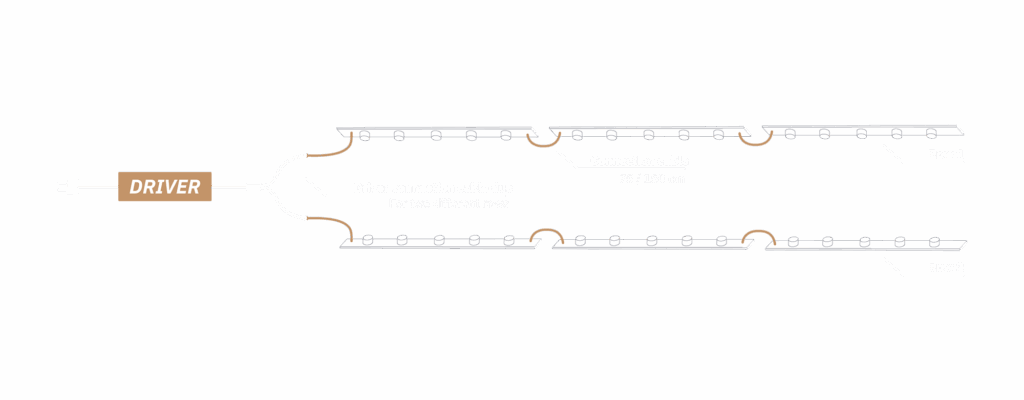

Enables the driver to be connected to two groups of modules, allowing multiple light lines to be powered by a single power source.

Product information

The VICI is an edgelit module for lightbox applications. The VICI is available with a compact 2-pin connector for quick and easy installation.

With a light output of no less than 2700 lumens, this module provides bright and uniform illumination of your lightbox. Thanks to nine 3-watt conical LEDs, the VICI offers impressive light intensity, and the conical shape of the LEDs ensures even lighting without any shadowing.

An external driver is required to power the VICI. With the matching connection cables, the VICI can be easily linked and adjusted to the desired length, allowing seamless integration into your lightbox system. With a beam angle of 39 x 13 degrees, the VICI delivers a focused and powerful light beam. The cool white colour temperature of 6500 K ensures a bright and vivid result – perfect for a wide range of applications. Additionally, the VICI can be shortened manually, allowing you to adapt the module to the specific dimensions of your lightbox.

Read more Read less

Related accessories

  • connectie kabel 24V
    Connection cable Lightbox 24V
    View product
  • Driver connection cable duo
    Driver connection cable duo 24V
    View product
  • Driver LED Lightbox Meanwell 240W 24V
    Driver LED Lightbox Meanwell 240W 24V
    View product
  • Driver LED Lightbox Slim 120W 24V
    Driver LED Lightbox Slim 120W 24V
    View product
    • chevron_left
    chevron_right

    Related products

    chevron_left
    chevron_right

    Frequently Asked Questions

    A maximum of 8 VICI modules (standard length) can be connected without any loss of brightness.

     Please refer to the specifications on the product page for more information.

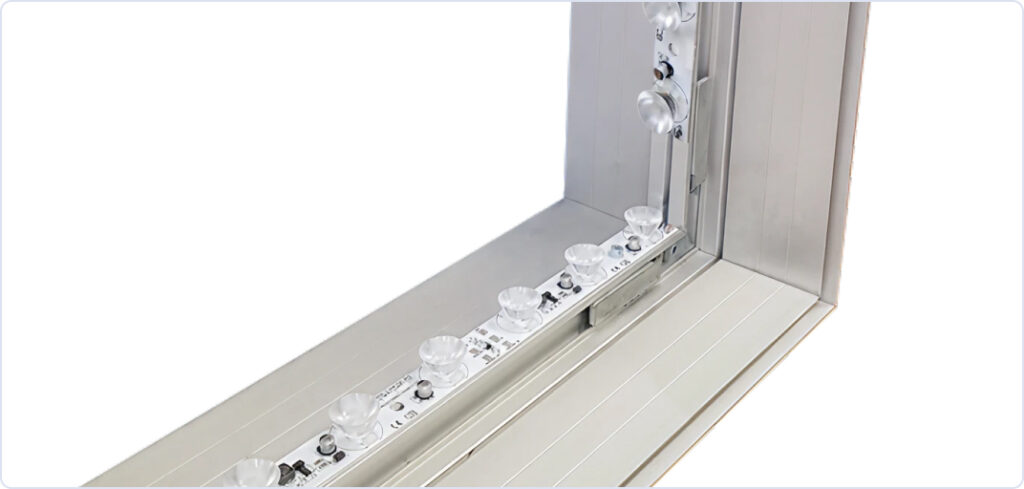

    The VICI can be mounted on any lightbox profile. The method of mounting the modules may vary depending on the profile.

     Please note: the LED modules generate heat, so mounting on a wooden frame is not recommended.

    To connect the VICI module to the power supply, a driver is required.
    Depending on the number of modules, choose a driver of 240 W, 120 W or 75 W.
    If you need to bridge a larger distance between multiple modules, connection cables are required.

    No, the VICI is not suitable for outdoor use and has an IP rating of IP20.
    By illuminating the lightbox with edgelit modules from both sides, a total maximum distance of 4 metres can be covered.
    This fully depends on the dimensions of the lightbox. Please contact us for personal advice.
