LONA Edgelit module

SKU: LLL-015-7

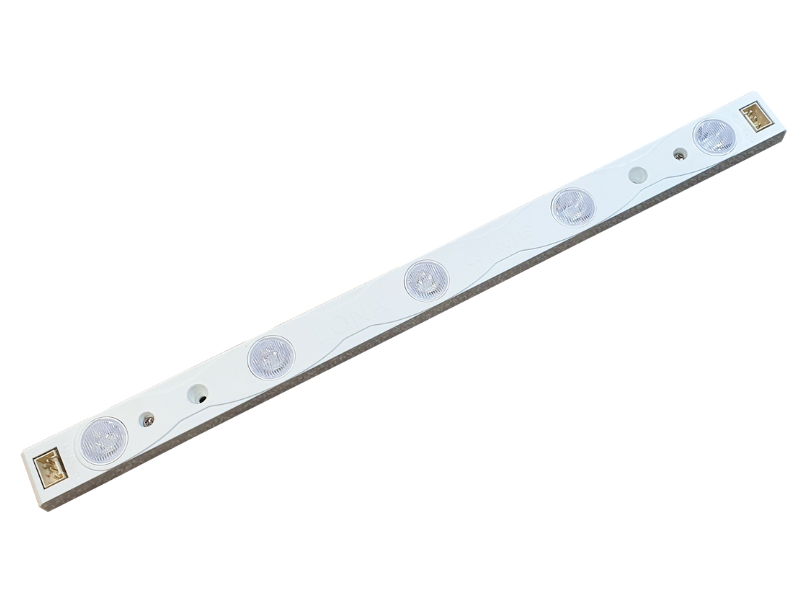

LONA lightbox module

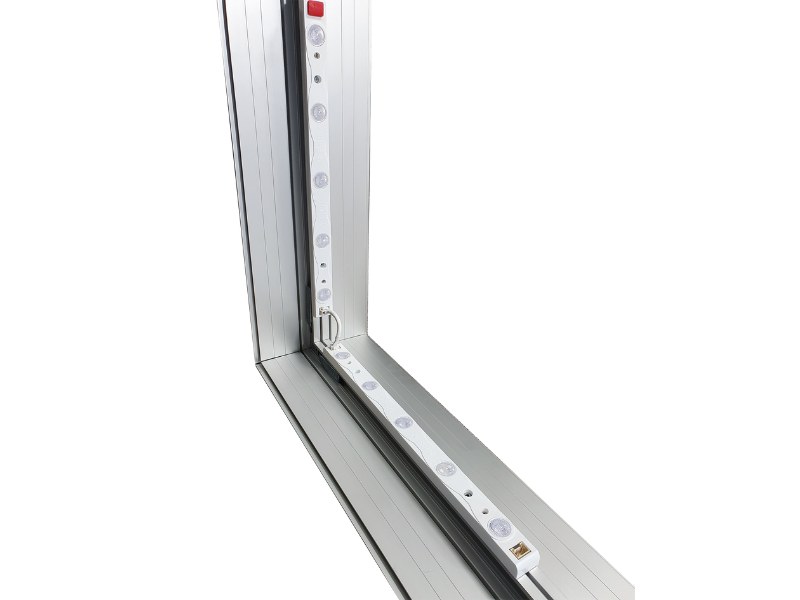

LONA lightbox module Frame-

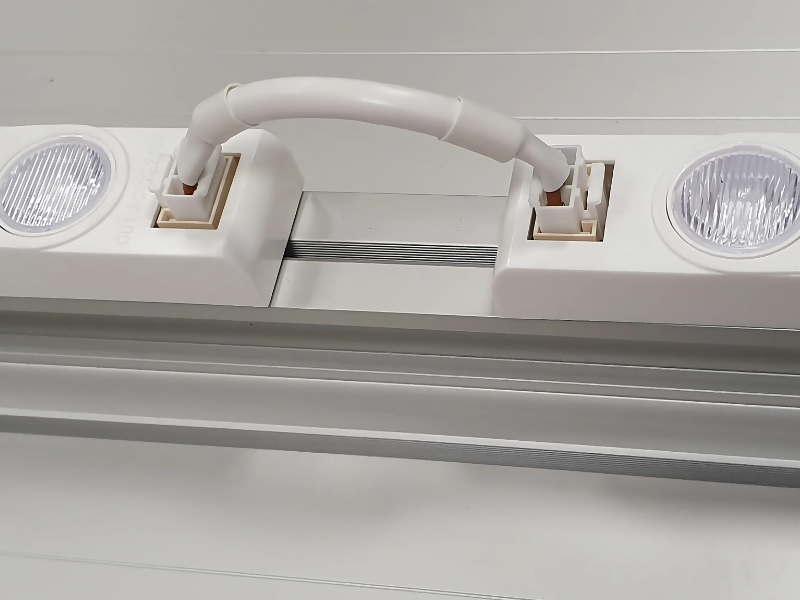

LONA lightbox module connection
chevron_left
chevron_right
play_arrow
LONA lightbox module
LONA lightbox module Frame-
LONA lightbox module connection
chevron_left
chevron_right

In stock

add_shopping_cartRequest a quote person Request an account
Maximum reach 3000 mm
Mounting Edgelit
Linkable Max. 20
Beam angle 45x10
Driver Integrated
We are here for you +31 (0)85 273 64 21
5 / 5
We score a 5 based on 7 reviews

What makes the LONA Lightbox module unique?

Integrated driver
Thanks to the built-in driver, the LONA edgelit module does not require a separate driver; simply plug it into a socket for instant illumination.

Easy to install

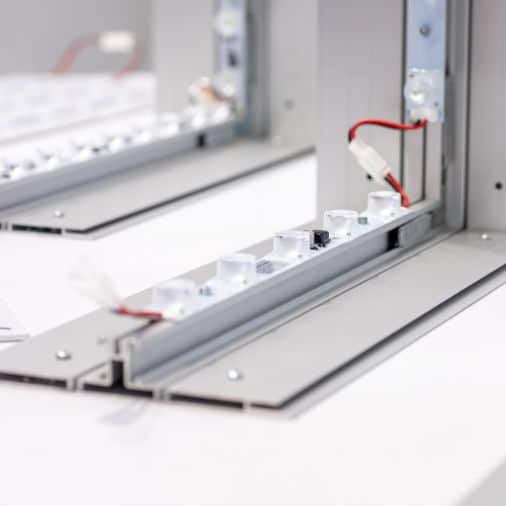

The LONA stands out for its quick and easy installation: screw the modules onto the aluminium frame and immediately experience the high light output.

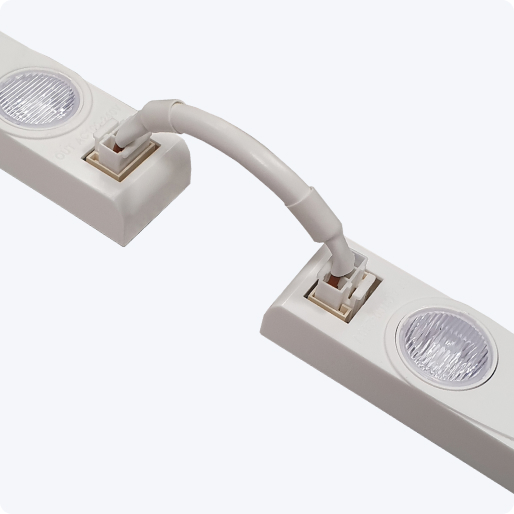

Daisy-chainable
You can effortlessly connect multiple LONA edgelit modules, allowing you to illuminate your lightbox quickly and efficiently.

  • check PLUG & PLAY
  • check Connect up to 20 modules

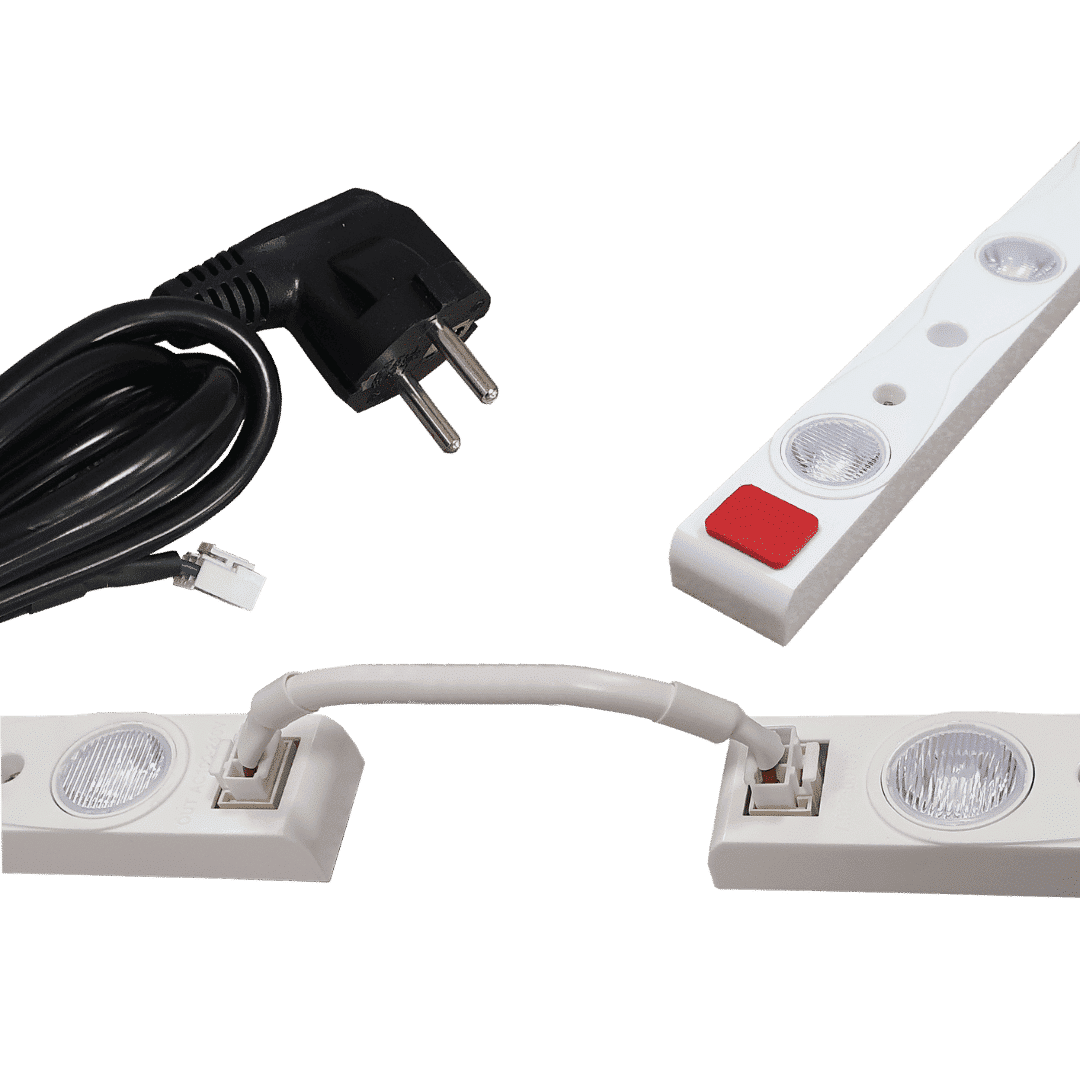

Accessories, what do I need?

You can easily add the accessories to your cart.

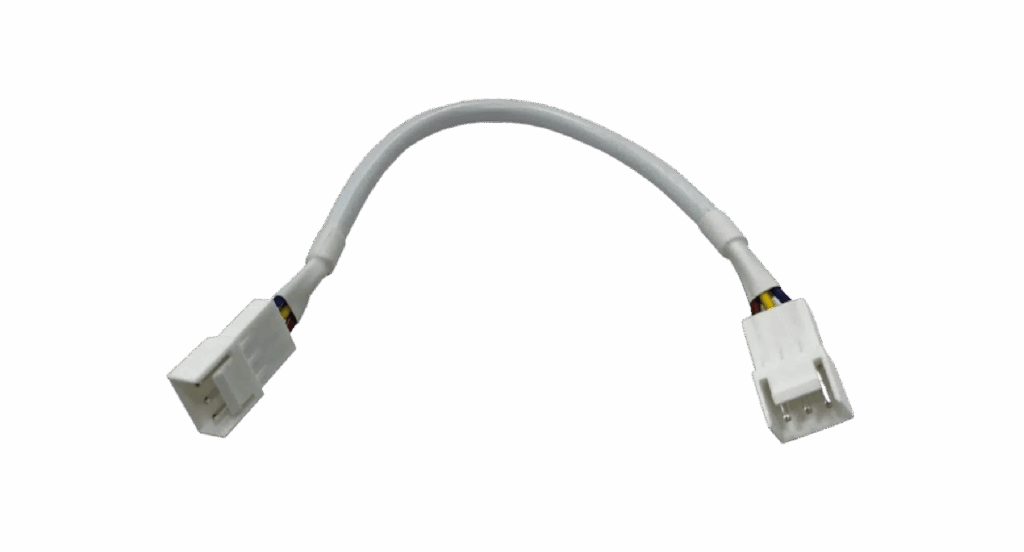

Extension cable (24 cm):
For extending the connection cables to bridge larger distances between the modules.

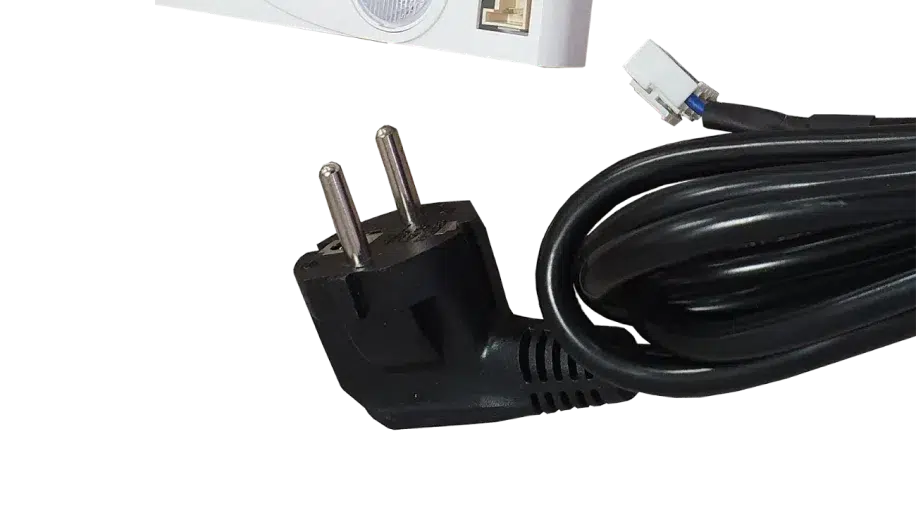

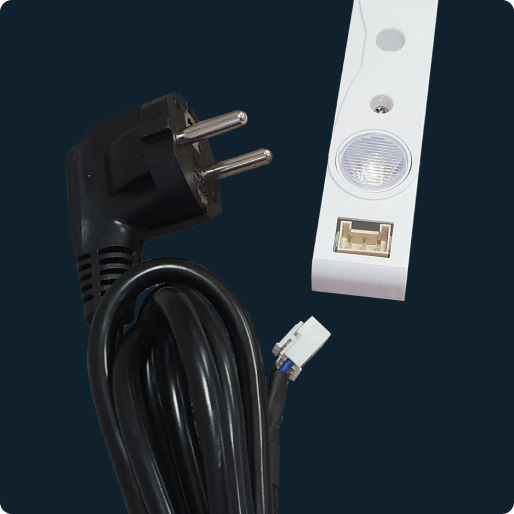

Power cable (EU plug):
Connects the lightbox module to the mains power supply (110–240 V), so no separate driver is needed.

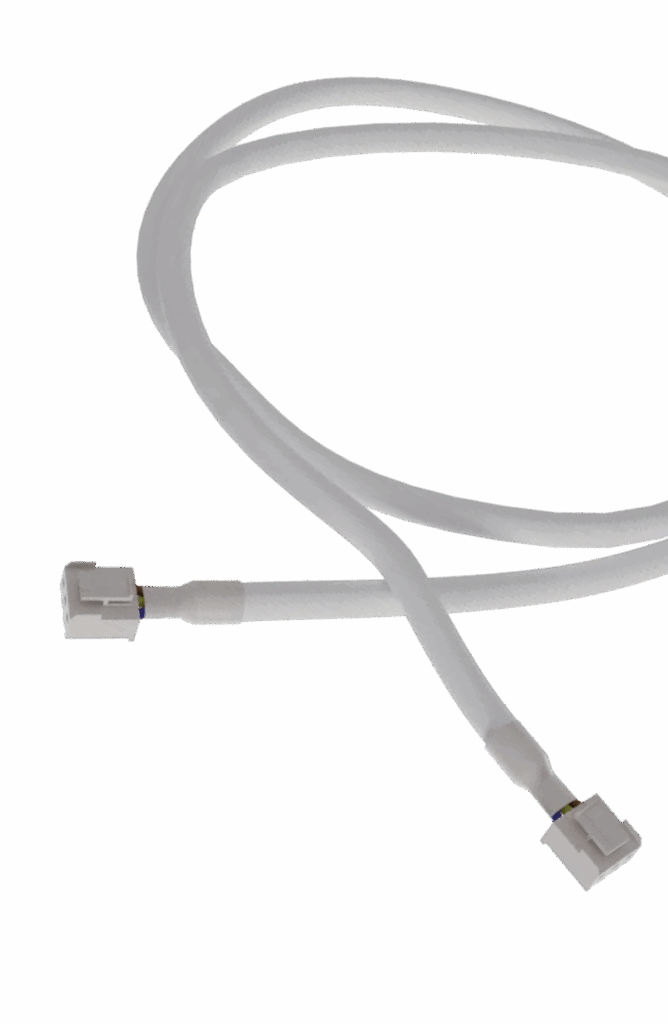

Connection cables (10/24/60/100/200 cm):
For linking multiple modules to create one continuous light line.

Product information

The LONA edgelit modules are powerful light sources that are easy to install along the sides of a lightbox. Thanks to the integrated driver, no external driver is needed, allowing for quick and effortless installation. The modules are powered directly via a standard power plug (AC 100–240 V).

Using connection cables in various lengths, multiple modules can be easily linked together. This allows you to equip any lightbox quickly and flexibly with bright LED lighting.

Read more Read less

Specifications

  • Maximum reach 3000 mm
  • Mounting Edgelit
  • Linkable Max. 20
  • Beam angle 45x10
  • Driver Integrated
  • Light output 1450 lm
  • Depth of light box 100 - 150 mm
  • Total dimensions 393 x 26 x 14 mm
  • Energy consumption 15W
  • Input Voltage AC 100-240V
  • Certificates CE, RoHS, UL
  • Storage temperature -20oC - +40oC
  • Working temperatur
  • CRI >75
  • IP-code IP20
  • Linkable Male and Female connector
  • LED chip SMD3535
  • Number of LEDs 5
  • LED type SMD
  • Lamp lifetime 30000 hrs
  • Light source LED
  • Power 18W
  • Color temperature Cool white (7000k)
  • Material LED, PCBA, Plastic
  • Color White
  • Adapter Built-in driver
  • Weight 115 g
View all specifications View less specifications

Do you have a question about the LONA Edgelit module?

Related accessories

  • Connectie kabel LONA
    Connection cable LONA
    View product
  • connectie Kabel LONA
    Connection cable LONA
    View product
  • Extension cord LONA for Connection cable 24 cm
    Extension cord LONA for Connection cable 24 cm
    View product
  • LONA power cable
    Power cable LONA EU socket
    View product
    • chevron_left
    chevron_right

    FAQ

    You can connect up to 20 LONA modules in series using the corresponding connection cables.
    The LONA can be mounted on any lightbox profile. The method of mounting the modules may vary depending on the profile.

     Please note: the LED modules generate heat, so mounting on a wooden frame is not recommended.
    1. Power cable (EU plug): Connects the built-in driver of the first module directly to the mains power supply (110–240 V).
    2. Connection cables (10/24/60/100/200 cm): For connecting multiple modules in a single light line.
    3. Extension cable (24 cm): For extending connection cables when there is a greater distance between modules.
    This fully depends on the dimensions of the lightbox. Please contact us for personal advice.
