LUMI 30

SKU: LAL-030

LUMI Displayspot
LUMI Technical drawing
chevron_left
chevron_right
LUMI Displayspot
LUMI Technical drawing
chevron_left
chevron_right
Select connection:
IEC (C13-C14) Wieland GST18
Select color temperature:
Description
?
The higher the Kelvin number, the cooler the light color. The lower the Kelvin number, the warmer the color.
Warm white (3000K) Neutral white (4000k) Cool white (5700k)
add_shopping_cartRequest a quote
lock_personlogin person Request an account
Power 30W
luminous flux 3300 lm, 3500 lm, 3700 lm
Number to daisy-chain 28
Connection IEC (C13-C14), Wieland GST18
We are here for you +31 (0)85 273 64 21
5 / 5
We score a 5 based on 7 reviews

What makes the LUMI 30 unique?

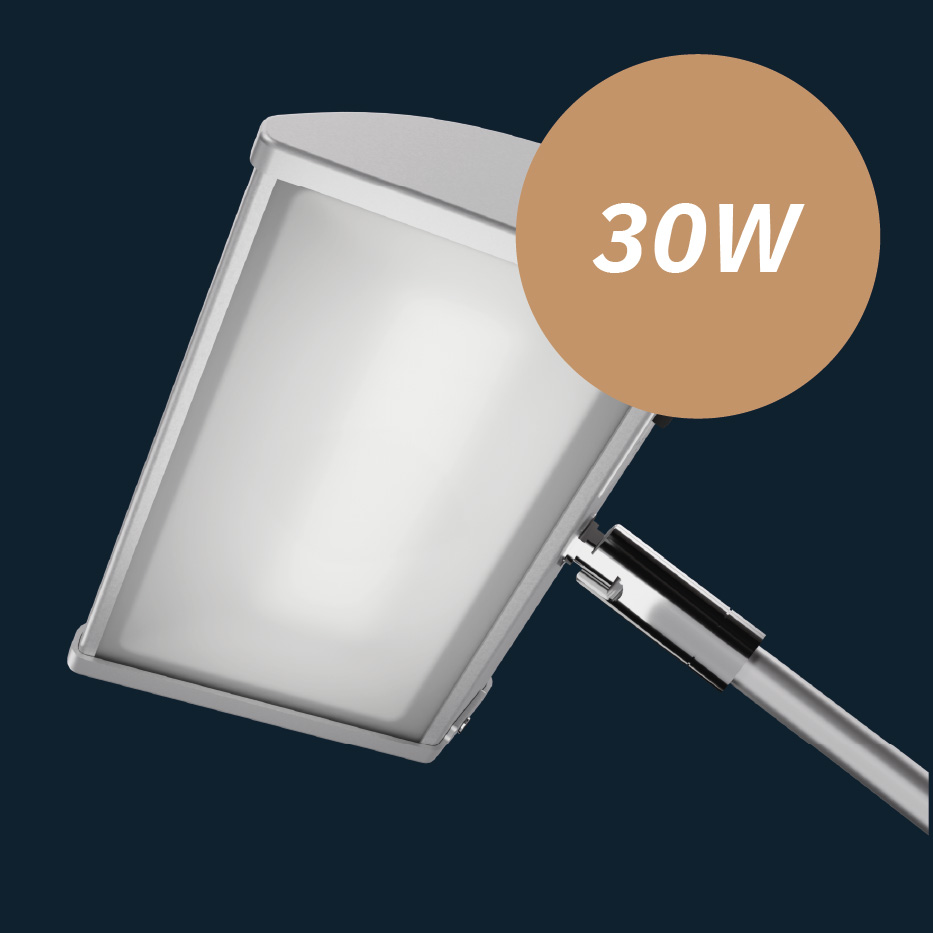

30 W – up to 3,200 lumens
The LUMI 30 is the most popular display spot in Europe. With 30 watts of power and up to 3,200 lumens, it delivers reliable and powerful lighting for a wide range of applications.



Mounting height 3.5 metres
Thanks to the various mounting clips, the LUMI can be easily installed on almost any exhibition system. The spot is designed for mounting heights of up to approx. 3.5 metres.



Daisy-chain up to 28 units
With the integrated IEC or Wieland connection, up to 28 display spots can be daisy-chained, making it easy to light larger walls quickly and efficiently.

Accessories, what do I need?

You can easily add the accessories to your cart.

Clips 
With the various mounting clips, our display spots can be used on any exhibition stand system.

Transport box 
Sturdy transport box for safe, easy transport using custom-cut foam. Space for 8 display spots plus mounting clips and cables.

Power & connection cables
Connect the display spot directly to the mains (100–240 V) with the power cable—no separate driver required. Daisy-chain multiple display spots using the connection cable (150/200/300 cm) and power them via a single power cable.

Product information

LUMI display spot – Popular and versatile lighting for any stand construction system



Clips for any stand construction system
The LUMI display spot is a powerful and versatile lighting solution with a power of 30 Watts. It is the most popular choice in Europe thanks to its impressive performance and wide applicability. Regardless of which stand construction system you use, the LUMI Display Spot fits perfectly in any situation, thanks to the different mounting clips available.



Built-in driver
With its built-in driver, the LUMI display spot delivers reliable performance and ensures bright and powerful lighting with a maximum output of up to 3200 lumens. This high light output ensures that your stand immediately stands out and attracts the attention of visitors.



Different colour temperatures
The LUMI display spot is available in three different colour temperatures: warm white (3000 Kelvin), neutral white (4000 Kelvin) and cold white (5700 Kelvin). This allows you to create the right atmosphere and ambiance that fits your stand and desired appearance. Whether you want to create a warm and cosy atmosphere or achieve a bright and modern effect, the LUMI Display Spot offers the flexibility to meet all your lighting needs.



Daisy-chaining
Thanks to the IEC C13-C14 connections or the Wieland GST-18 input + output, the LUMI display spot can easily be daisy-chained with other spots. Enjoy the convenience of fast installation and the freedom to adjust the lighting as you wish.



Quality and safety
The LUMI 30 is made of robust aluminium and complies with strict safety standards and quality requirements. This ensures you can fully rely on the safety and reliability of this high-quality Display Spot.



Transport and storage
Use practical transport boxes to carry or store the LUMI without damage.

Read more Read less

Specifications

  • Power 30W
  • luminous flux 3300 lm, 3500 lm, 3700 lm
  • Number to daisy-chain 28
  • Number switching cycles 15000
  • Adapter Built-in IEC C14 input + IEC C13 output
  • Dimension base 166 x 66 x 55 mm
  • Clips available Aluvision, beMatrix, Octanorm, Syma, Modul, Panel, Truss
  • Storage temperature -5oC - +40oC
  • Gross weight 1200 g, 950 g
  • Certificates CE, TÜV, GS
  • Electr. safety class 1
  • Energy label E
  • Energy consumption 30W
  • Dimension head 121 x 163 x 47 mm
  • Input power DC 30-36V 0,9A
  • Input Voltage AC 100-240V
  • IP-code IP20
  • Tilt angle 90
  • Color temperature Cool white (5700k), Neutral white (4000k), Warm white (3000k)
  • Linkable Single or Serial connection
  • LED chip Lumileds
  • Number of LEDs 36
  • LED type SMD
  • Arm length 369 mm
  • Lamp lifetime 30000 hrs
  • Light source LED
  • Reflector / Lens Asymmetric
  • Rotating and tilting Rotating
  • Beam angle 90
  • Total dimensions 610 x 163 x 55 mm
  • Safety cable Option available (not included)
View all specifications View less specifications

Do you have a question about the LUMI 30?

Related accessories

  • Maximum reach: 3000 mm
    Mounting: Edgelit
    LONA Edgelit module
    View product
  • MUSA 30 - Tri-color
    View product
    • chevron_left
    chevron_right

    Vergelijkbare producten

  • Clip Aluvision beMatrix
    Clip Aluvision - beMatrix
    View product
  • Clip Custom
    Clip Custom
    View product
  • Clip Octanorm
    Clip Octanorm 1
    View product
  • Transportbox displayspot
    Transport box for 8x display spots
    View product
    • chevron_left
    chevron_right

    Frequently Asked Questions

    The LUMI 30 can be daisy-chained up to 28 times.

    Depending on the length and application, one display spot per metre is recommended for even light distribution.

    The LUMI 30 is available in Cool white (5700K), Neutral white (4000K) and Warm white (3000K).

    A power cable or other accessories are not included. Depending on the desired connection (IEC or Wieland), you can add the correct cable separately.

    The LUMI 30 is suitable for a mounting height of approx. 3.5 metres.
