NL ZORO 50
SKU: LLZ-50
What makes the ZORO 50 unique?
Efficient project lighting for system stands and uniform stand construction
The ZORO 50 is developed from the perspective of (large-scale) uniform stand construction where speed and convenience are of great importance. The lamp is designed in such a way that with its powerful 50W capacity, it evenly illuminates stands, making the installation of tracks and/or separate spots unnecessary.

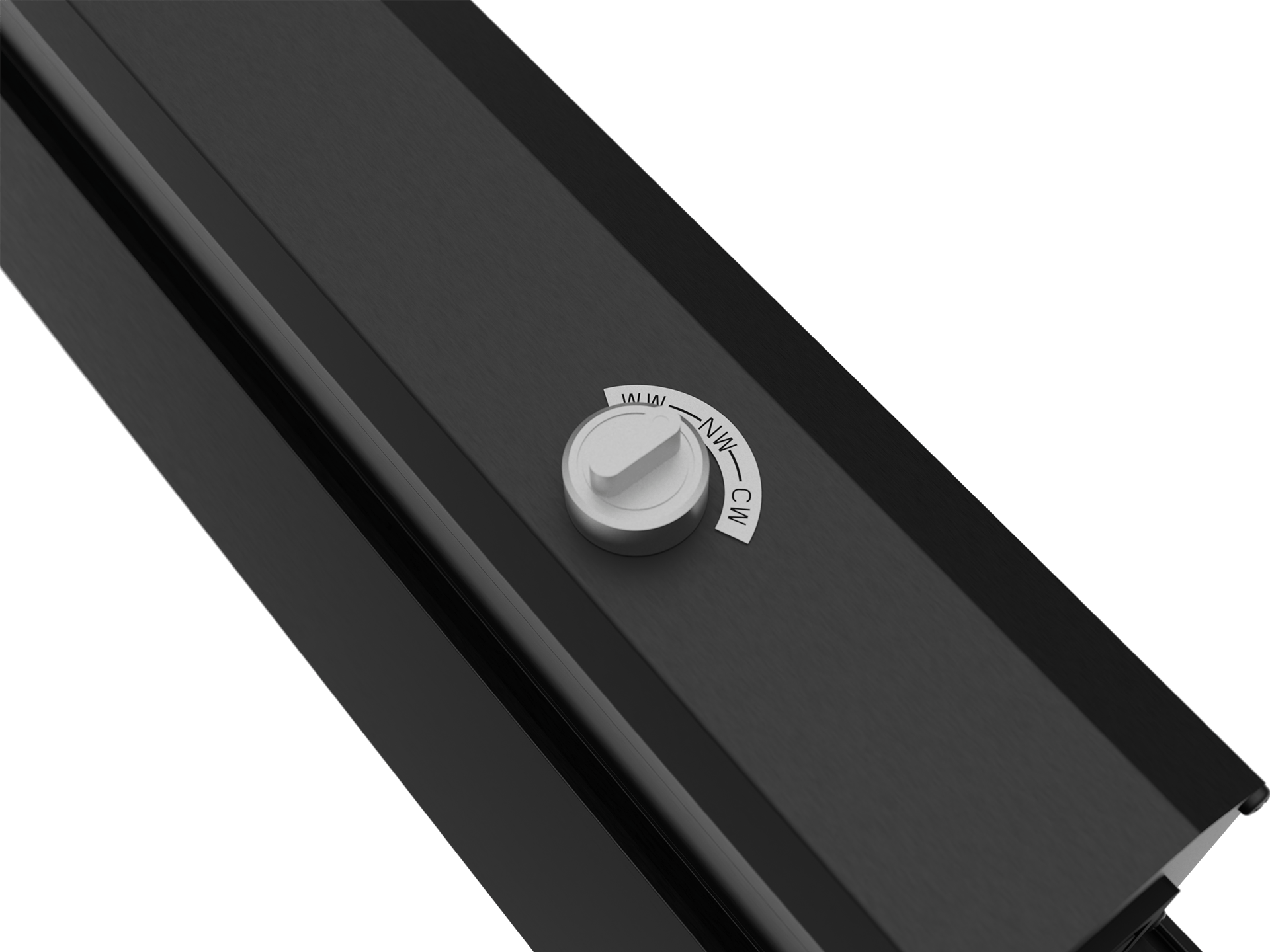

Flexible in color
With the Tri-Color switch, you can quickly and easily switch between different light temperatures (3000, 4000, or 5700K), allowing the appearance to be adjusted to the respective stand. This way, a hall can be filled with one and the same lamp while still creating an individual appearance per stand. A great saving in time and inventory.
Easy installation
The ZORO 50 is easy to attach to all systems in combination with the well-known Exposupply clips. There is also a special cost-effective ZORO clip for Aluvision and beMatrix frames.
Accessories, what do I need?

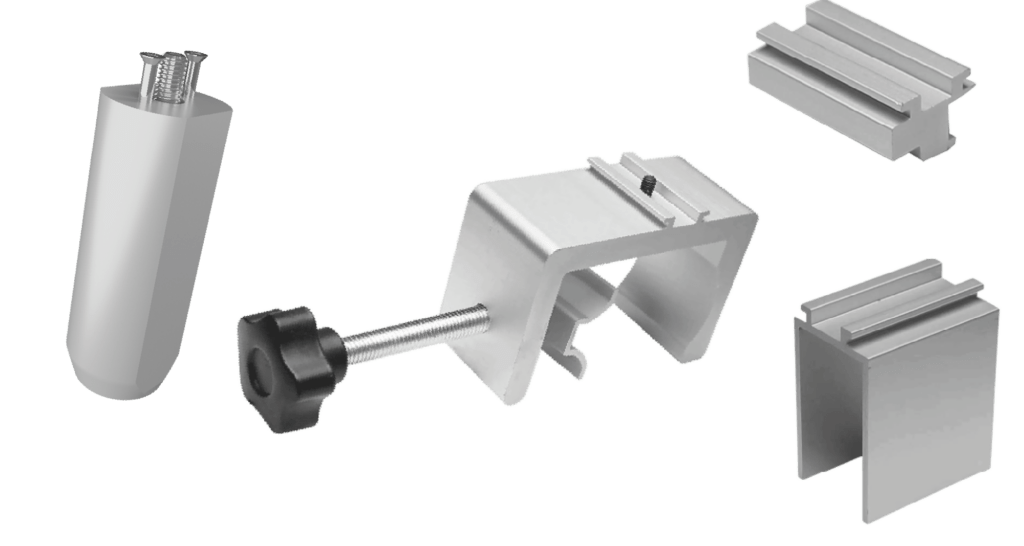

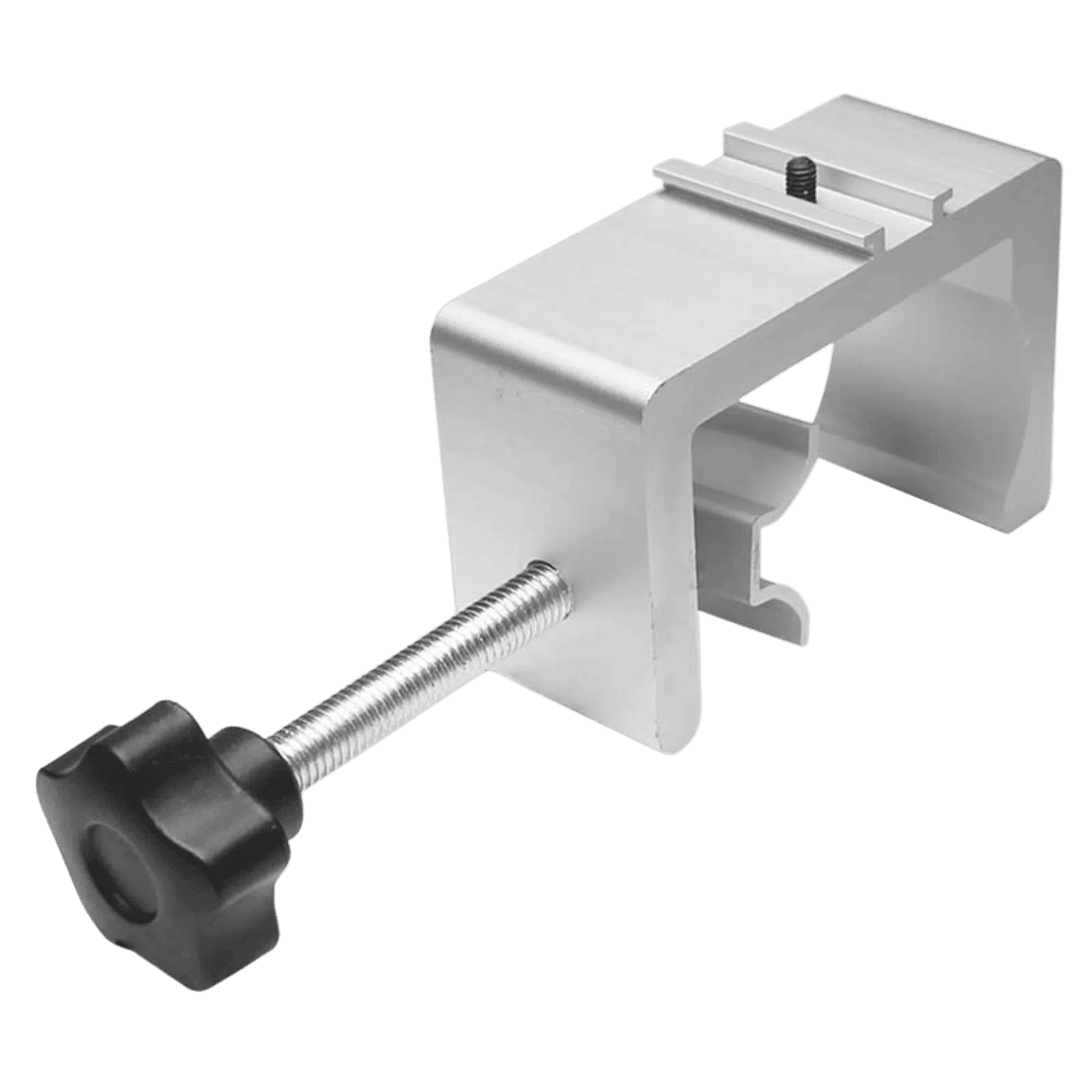

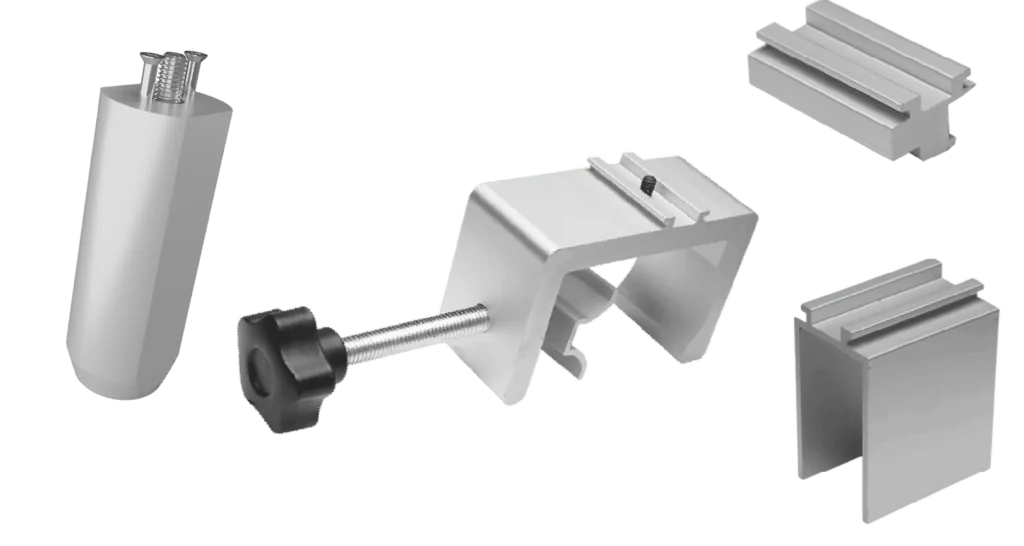

Clips
With the different mounting clips, the ZORO 50 can be used with any exhibition stand system. The ZORO also has a dedicated clip for Aluvision.

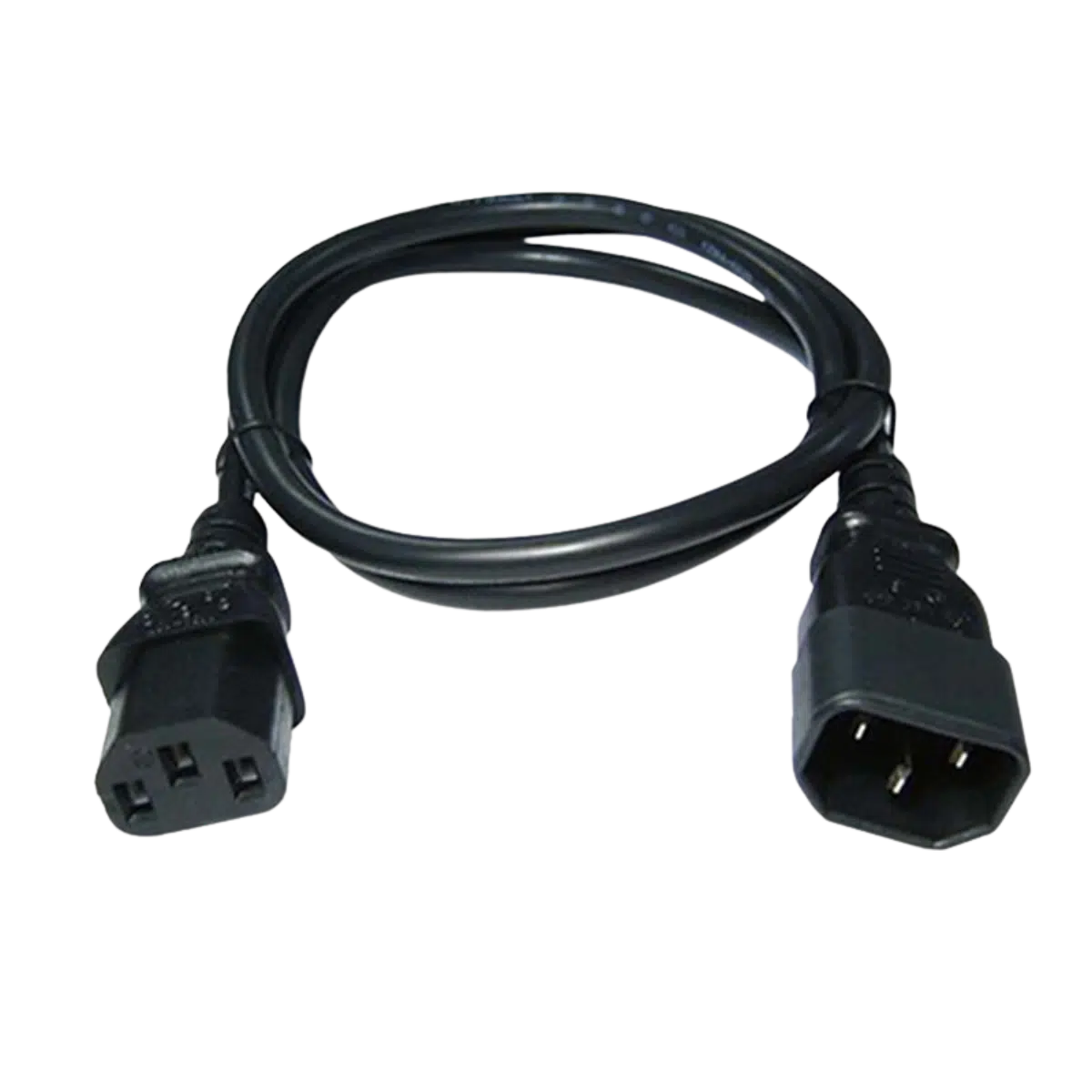

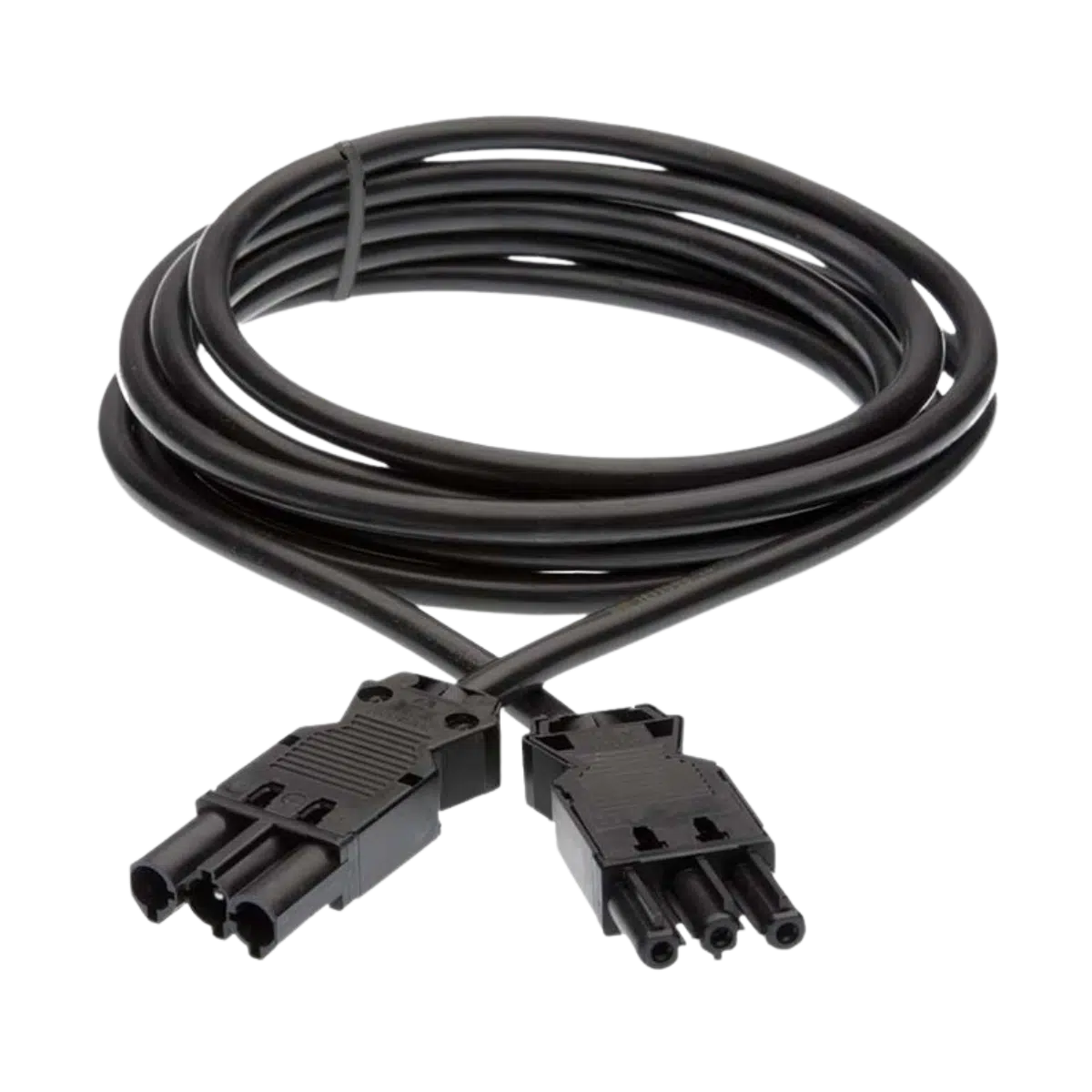

Power & connection cables
Connect the ZORO directly to the mains (100–277 V) with the power cable—no separate driver required. Daisy-chain multiple Led Light Bars using the connection cable (150/200/300 cm) and power them via a single power cable.
Product information

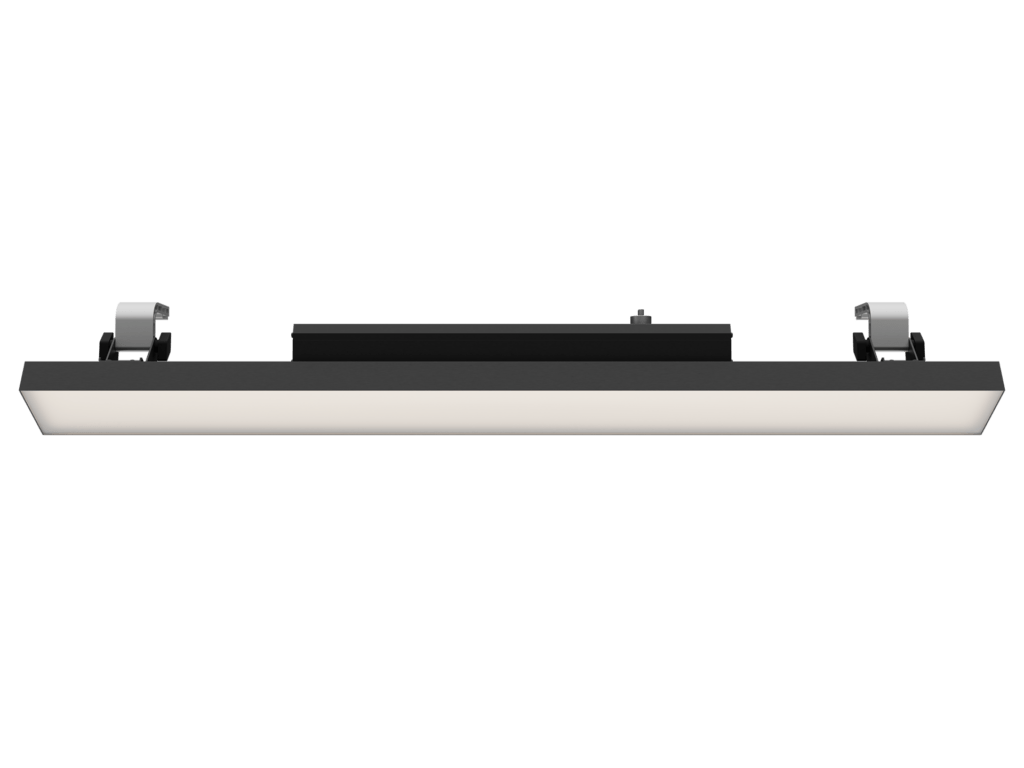

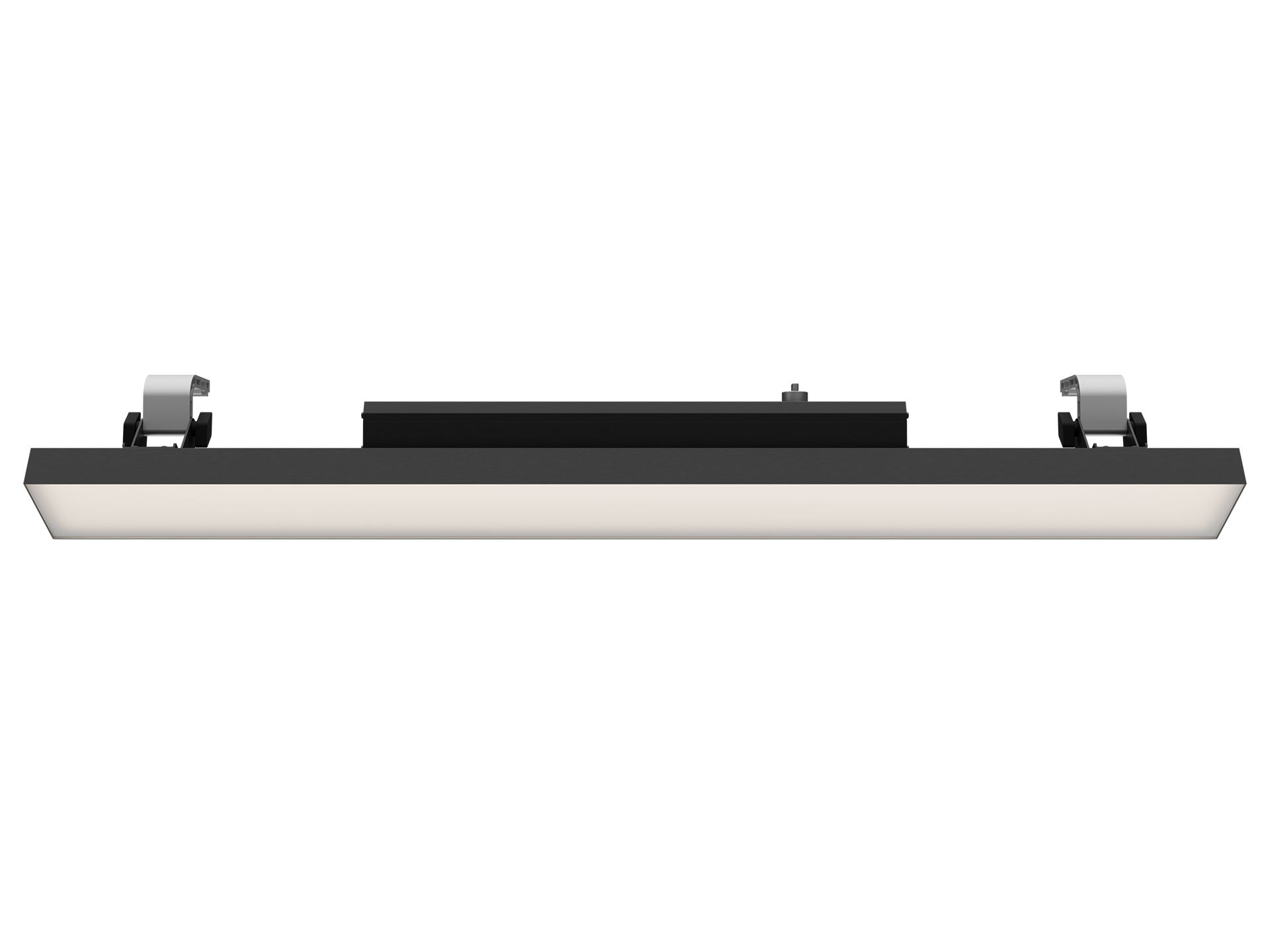

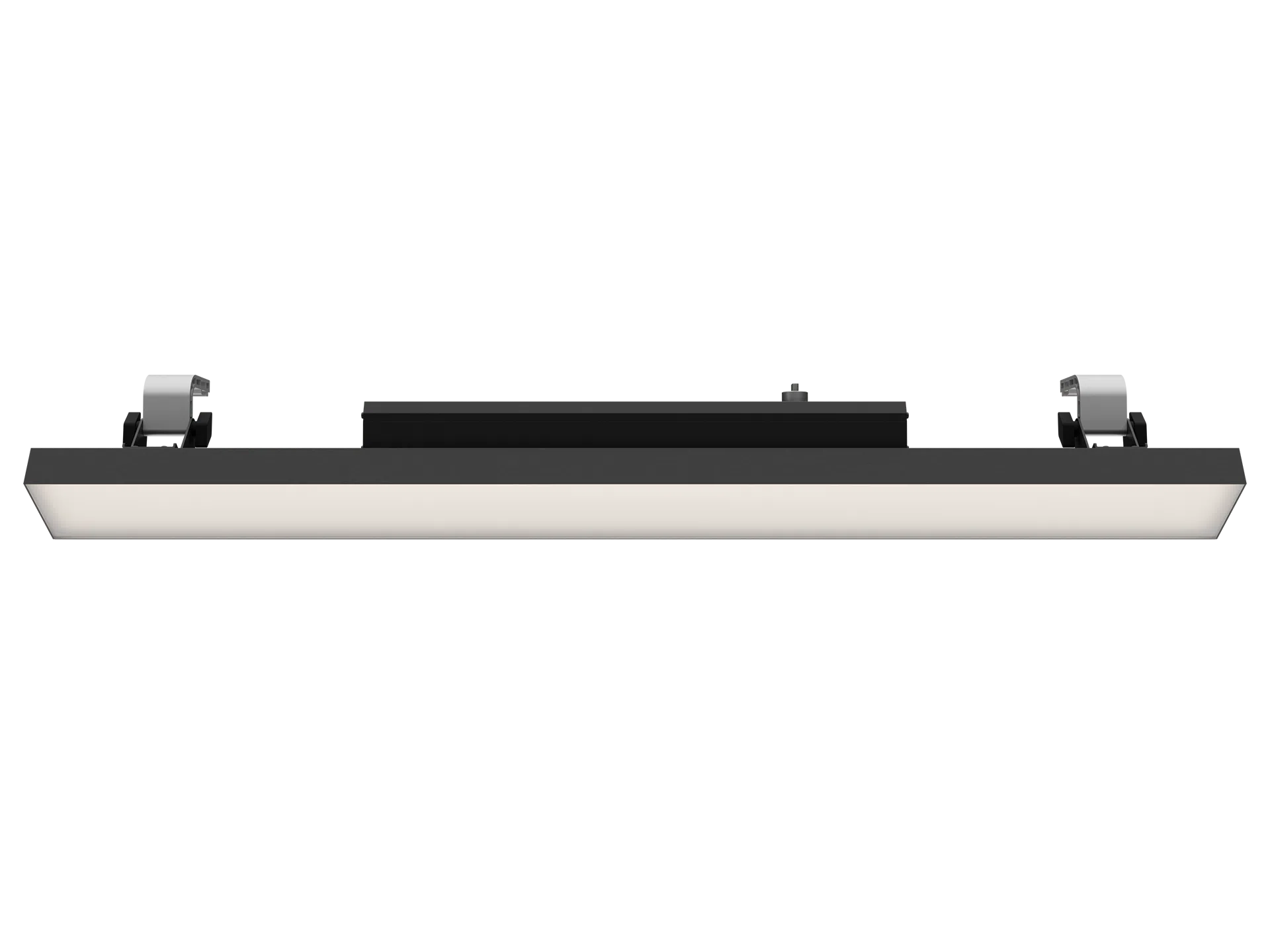

ZORO 50 – project lighting for system stands
The ZORO 50 is an LED light bar for project lighting primarily developed for system stands and large-scale applications. The lamp is designed to efficiently, quickly, and uniformly illuminate large surfaces. Very suitable for projects where time savings, simplicity, and scalability are central.

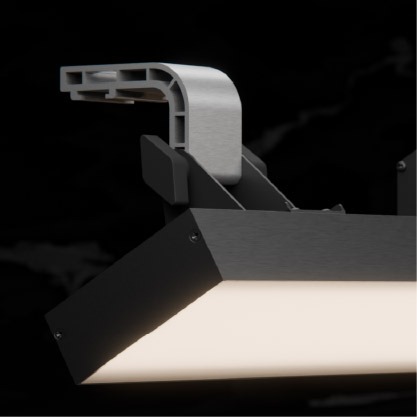

Easy mounting on aluminum frames

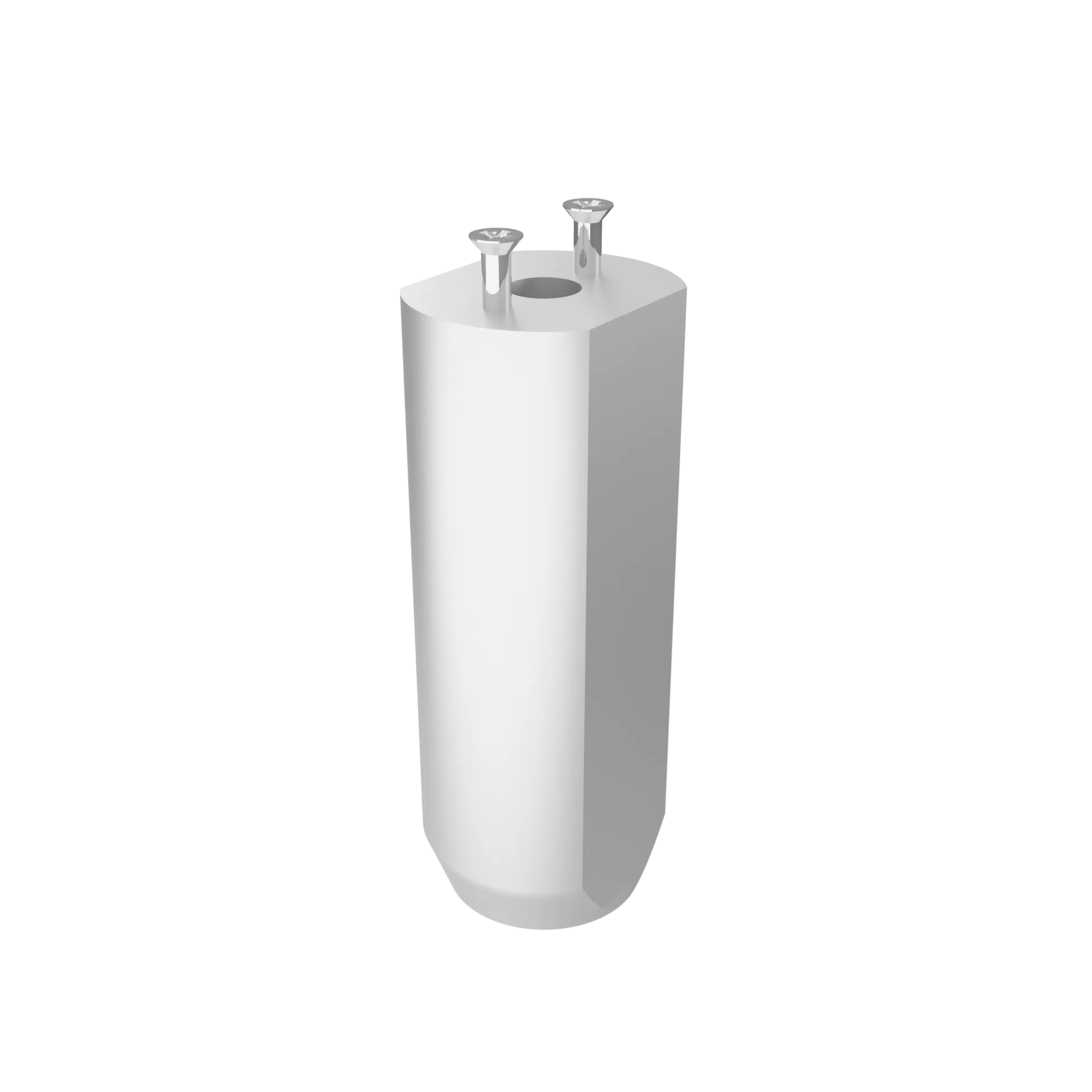

Thanks to a specially developed clip, the ZORO 50 can be easily attached to aluminum frames such as Aluvision and beMatrix. This makes installation faster, more organized, and more robust within system stand construction.

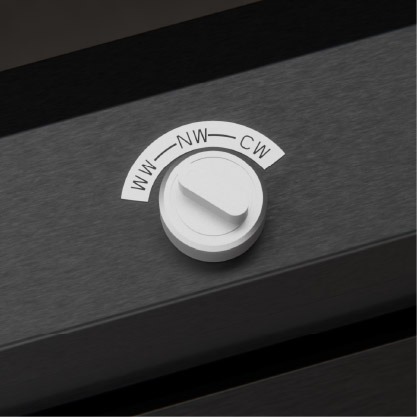

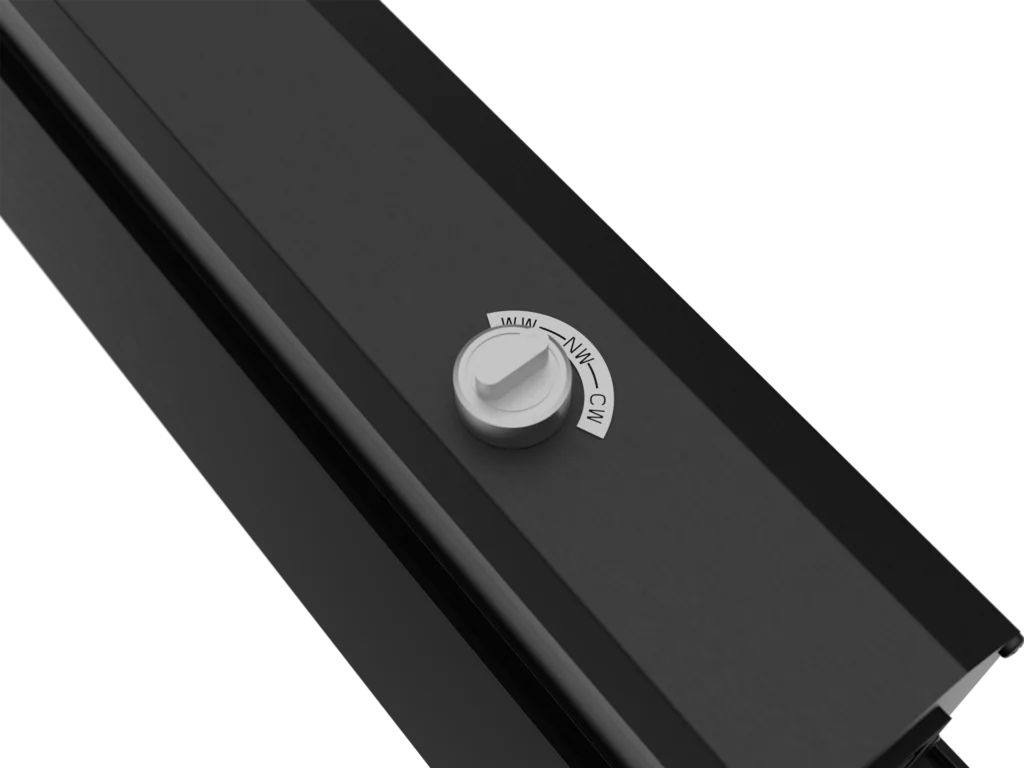

Tri-Color Switch
With the Tri-Color switch, you can easily choose between three colour temperatures: Warm white (3000K), Neutral white (4000K), and Cold white (5700K). This allows you to perfectly match the lighting to materials, graphics, and the desired appearance of the stand.
Project lighting with wide distribution
Thanks to the wide beam angle of 120°, the ZORO 50 provides uniform project lighting without shadows. This makes the lamp ideal for general stand lighting and evenly illuminating walls and presentations.
Powerful and efficient
With a light output of up to 7,500 lumens and a power of 50 watts, the ZORO 50 offers powerful performance in a compact size, suitable for mounting at approximately 3 meters height.

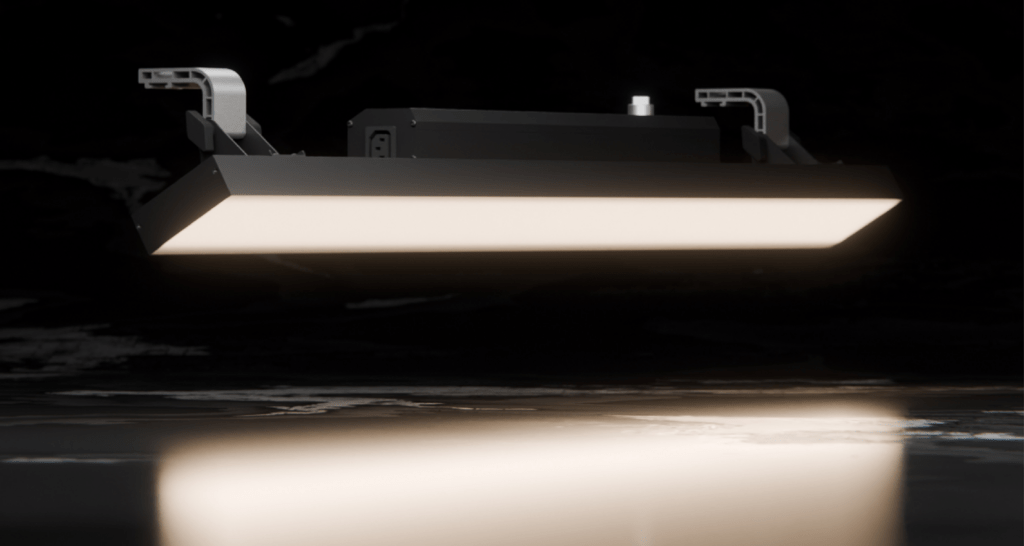

Easy to daisy chain

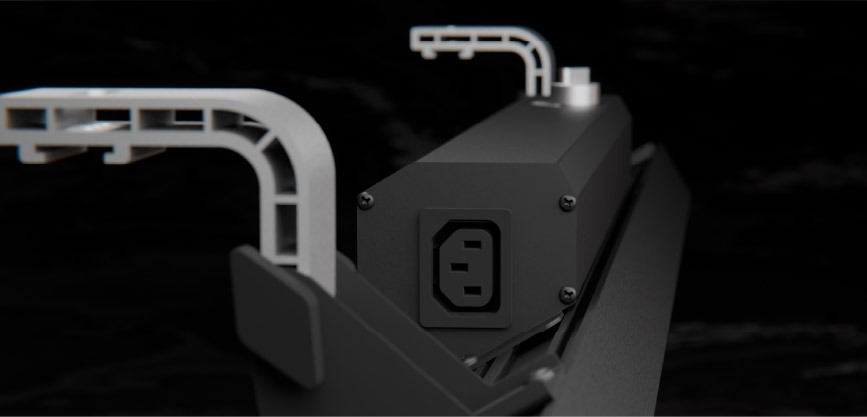

Via the IEC C13–C14 connection or Wieland GST18 input and output, the ZORO 50 is easy to daisy chain.
Specifications
- Material Aluminum
- Beam angle 120°
- Arm length 132 mm
- Energy label C
- Certificates CE, RoHS
- Energy consumption 50W
- Input Voltage AC 100-277V
- LED type SMD
- Lamp lifetime 50000 hrs
- IP-code IP20
- Color temperature Tri-color (3000K + 4000K + 5700K)
- Adapter Built-in IEC C14 input + IEC C13 output, Built-in Wieland GST18 (Male + Female)
- Power 50W
- Linkable IEC 40, Wieland 60
Do you have a question about the ZORO 50?
Related accessories
Related products
Frequently Asked Questions
The ZORO 50 is mounted on the inside of the frieze of a system stand. The fixture shines from there onto the opposite wall, providing even project lighting.
For different system stand construction systems, specific mounts are available, including Aluvision, Hestex, and Octanorm. This makes installation quick and efficient within existing stand constructions.
That depends on the stand size and the application. In a standard 3 × 3 meter system stand, one centrally mounted ZORO 50 is usually sufficient.
The ZORO 50 is available as a tri-color version. This allows switching between: Cold white (5700K), Neutral white (4000K), Warm white (3000K).
A power cable or other accessories are not included. Depending on the desired connection (IEC or Wieland), you can add the appropriate power cable.
The ZORO 50 is suitable for a mounting height of approximately 2.5 – 3 meters.
