UVAL Edgelit module - 3 pin

SKU: LLU-3-pin

UVAL
UVAL
UVAL
UVAL
UVAL
chevron_left
chevron_right
UVAL
UVAL
UVAL
UVAL
UVAL
chevron_left
chevron_right
Select number of leds:
3x3w 5x3w
add_shopping_cartRequest a quote person Request an account
Maximum reach 3000 mm
Mounting Edgelit
Number to daisy-chain Max. 10 (15W), Max. 20 (9W)
Beam angle 45x15
Driver Extern
We are here for you +31 (0)85 273 64 21
5 / 5
We score a 5 based on 7 reviews

What makes the UVAL unique?

Powerful and even light output
With five 3 W Osram LEDs per module, the UVAL delivers up to 1350 lumens. Perfect for illuminating fabric graphics in exhibition walls clearly and evenly.

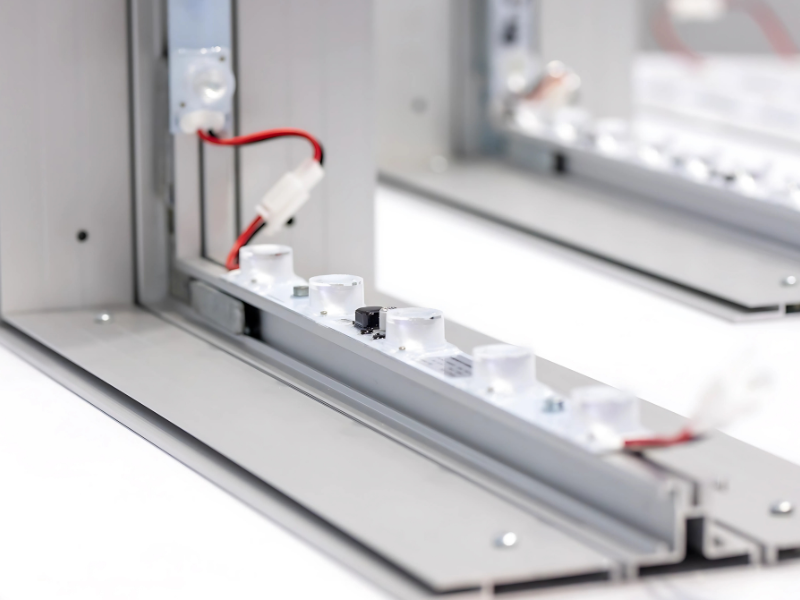

Fixed mounting with screws on the profile
UVAL modules are mounted directly onto the aluminium frame using screws. No clips or loose parts, ensuring a secure fit – even after reuse or during transport.

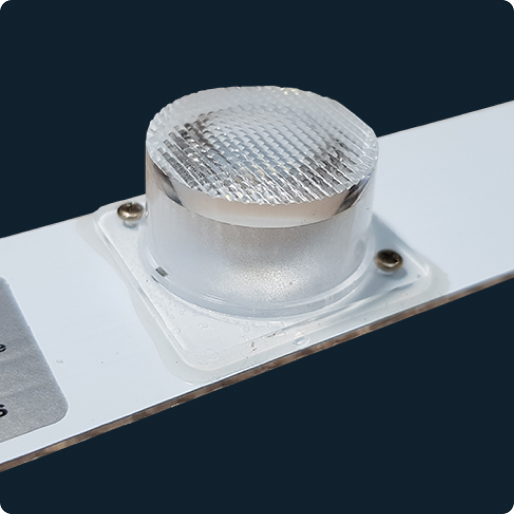

Protective cover above the LEDs for safe and diffused light
The integrated plastic cover protects the LEDs from dust or damage on the exhibition floor and distributes the light evenly across the fabric, without hotspots or shadows.

  • check OBUST
  • check CONNECT UP TO 10 MODULES

Accessories, what do I need?

You can easily add the accessories to your cart.

Connection cables (75 cm / 150 cm, 2-pin or 3-pin):
For bridging a longer distance between the modules; compatible with VICI, UVAL and YONI.

Driver Lightbox Slim (75 W / 120 W) and/or Meanwell 240 W
Converts mains voltage to 24 V DC. Select the driver with the power output that matches the number of modules you are using.

Driver connection cable duo:
Enables the driver to be connected to two groups of modules, allowing multiple light lines to be powered by a single power source.

Product information

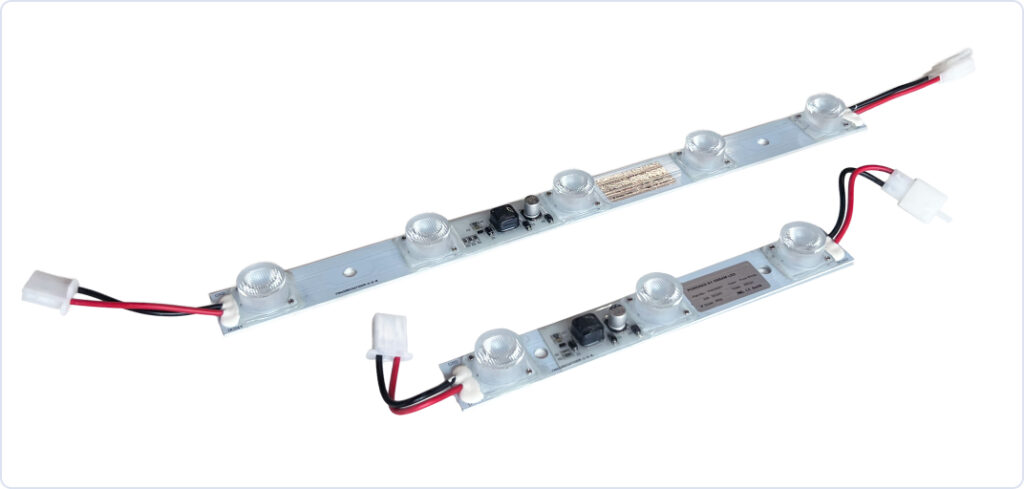

The UVAL edgelit module is easily mounted onto the aluminium frame of your lightbox and delivers an impressive light output of 1350 lumens with five powerful 3-watt LEDs.

The UVAL is available with a robust connector, fully compatible with Pixlip connections, ensuring a strong and secure installation. Using connection cables, you can easily link multiple modules, enabling bright and even illumination across larger surfaces.

The UVAL operates on mains power via an AC 100–240V driver, making it suitable for use in a wide range of environments.

With a beam angle of 45 x 15 degrees, the UVAL offers precise and focused light distribution. Its cool white colour temperature of 7000K gives your visuals a fresh and vibrant appearance.

The LEDs are firmly screwed onto the aluminium strip, ensuring they remain stable and secure – ideal for frequent use.

Read more Read less

Specifications

  • Maximum reach 3000 mm
  • Depth of light box 100 - 150 mm
  • Mounting Edgelit
  • Number to daisy-chain Max. 10 (15W), Max. 20 (9W)
  • Beam angle 45x15
  • Driver Extern
  • Light output 1350 lm, 810 lm
  • Total dimensions 205 x 27 x 16 mm, 464 x 27 x 16 mm
  • Energy consumption 15W, 9W
  • Input Voltage DC 24V
  • Certificates CE, RoHS, UL
  • Coupling plug 3-pin
  • Storage temperature -20oC - +40oC
  • CRI >75
  • IP-code IP20
  • Linkable Male and Female connector
  • LED chip Osram
  • Number of LEDs 3, 5
  • LED type SMD
  • Lamp lifetime 50000 hrs
  • Light source LED
  • Power 15W, 9W
  • Color temperature Cool white (7000k)
  • Material Aluminum
  • Color Grey
  • Dimmable No
  • Weight
  • Packaging dimensions
  • Working temperatur -20 ºC – +40 ºC
View all specifications View less specifications

Do you have a question about the UVAL Edgelit module - 3 pin?

Related accessories

  • connectie kabel 24V
    Connection cable Lightbox 24V
    View product
  • Driver connection cable duo
    Driver connection cable duo 24V
    View product
  • Driver LED Lightbox Meanwell 240W 24V
    Driver LED Lightbox Meanwell 240W 24V
    View product
  • Driver LED Lightbox Slim 120W 24V
    Driver LED Lightbox Slim 120W 24V
    View product
    • chevron_left
    chevron_right

    Frequently Asked Questions

    A maximum of 10 UVAL modules (5×3 W) can be connected without any loss of brightness.

    Please refer to the specifications on the product page for more information.
    The UVAL can be mounted on any lightbox profile. The method of mounting the modules may vary depending on the profile.

    Please note: the LED modules generate heat, so mounting on a wooden frame is not recommended.
    To connect the UVAL module to the power supply, a driver is required.

    Depending on the number of modules, choose a driver of 240 W, 120 W or 75 W.

    If you need to bridge a larger distance between multiple modules, connection cables are required.
    To connect the UVAL module to the power supply, a driver is required. Depending on the number of modules, choose a driver of 240 W, 120 W or 75 W. If you need to bridge a larger distance between multiple modules, connection cables are required.
    No, the UVAL is not suitable for outdoor use and has an IP rating of IP20.
    By illuminating the lightbox with edgelit modules from both sides, a total maximum distance of 3 metres can be covered.
    The UVAL is available in two different lengths: 3×3 W and 3×5 W.
