Lightbox LED modules

Choose Exposupply’s Lightbox Modules

checkCompatible with systems like Aluvision, beMatrix, Octanorm, Pixlip & EFKA
checkEdgelit and backlit modules
checkPlug & play options available
checkFast delivery from stock
checkEasy to install
checkCustom solutions available

chevron_left chevron_right

Lightbox Modules for Every Application

Exposupply’s lightbox modules are compatible with all major profile systems.

Depending on your frame and application, choose either a backlit or edgelit version – both deliver a powerful and evenly lit result.

Thanks to their smart design, the modules are highly versatile and easy to install across different profiles:

checkALUVISION
checkBEMATRIX
checkOCTANORM
checkPIXLIP
checkEFKA

LONA Edgelit module

VICI

YONI

UVAL

Maximum reach

Mounting

Linkable

Beam angle

Driver

Light output

Depth of light box

Total dimensions

Energy consumption

Input Voltage

Certificates

Storage temperature

Working temperatur

CRI

IP-code

Linkable

LED chip

Number of LEDs

LED type

Lamp lifetime

Light source

Power

Color temperature

Material

Color

Adapter

Weight

Coupling plug

Dimmable

Packaging dimensions

3000 mm

Edgelit

Max. 20

45×10

Integrated

1450 lm

100 – 150 mm

393 x 26 x 14 mm

15W

AC 100-240V

CE, RoHS, UL

-20oC – +40oC

-20 ºC – +60 ºC

>75

IP20

Male and Female connector

SMD3535

5

SMD

30000 hrs

LED

18W

Cool white (7000k)

LED PCBA Plastic

White

Built-in driver

115 g

N/A

SUPER BRIGHT

4000 mm

Edgelit

Max. 8

39×13

Extern

1800 lm 2700 lm 900 lm

100 – 150 mm

190 x 23 x 18 mm 380 x 23 x 18 mm 380 x 23 x 18 mm 570 x 23 x 18 mm

18W 27W 9W

DC 24V

CE

-20oC – +40oC

-20 ºC – +40 ºC

>75

IP20

Male and Female connector

Osram

3 6 9

SMD

50000 hrs

LED

18W 27W 9W

Cool white (6500k)

Aluminum

Grey

N/A

111 g 39 g 90 g

2-pin

No

N/A

BACKLIT

80 mm

Backlit

4

170°

Extern

1200 lm 600 lm

Max. 50 mm

480 x 20 x 7,2 mm 960 x 20 x 7,2 mm

12W 6W

DC 24V

CE, RoHS, UL, TÜV

-20oC – +40oC

-20 ºC – +60 ºC

>75

IP20

Male and Female connector

SMD2835

12

SMD

30000 hrs

LED

12W 6W

Cool white (7000k)

Aluminum

Grey

N/A

43 g 73 g

N/A

Yes

1030 x 250 x 175 mm

ROBUST

3000 mm

Edgelit

Max. 10 (15W) Max. 20 (9W)

45×15

Extern

1350 lm 810 lm

100 – 150 mm

205 x 27 x 16 mm 464 x 27 x 16 mm

15W 9W

DC 24V

CE, RoHS, UL

-20oC – +40oC

-20 ºC – +40 ºC

>75

IP20

Male and Female connector

Osram

3 5

SMD

50000 hrs

LED

15W 9W

Cool white (7000k)

Aluminum

Grey

N/A

54 g 80 g

3-pin

No

583 x 242 x 270 mm

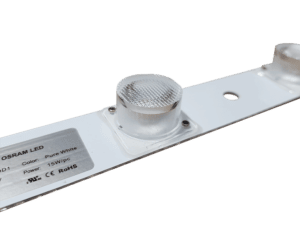

UVAL egdelit module Robust. Powerful and uniform light output.

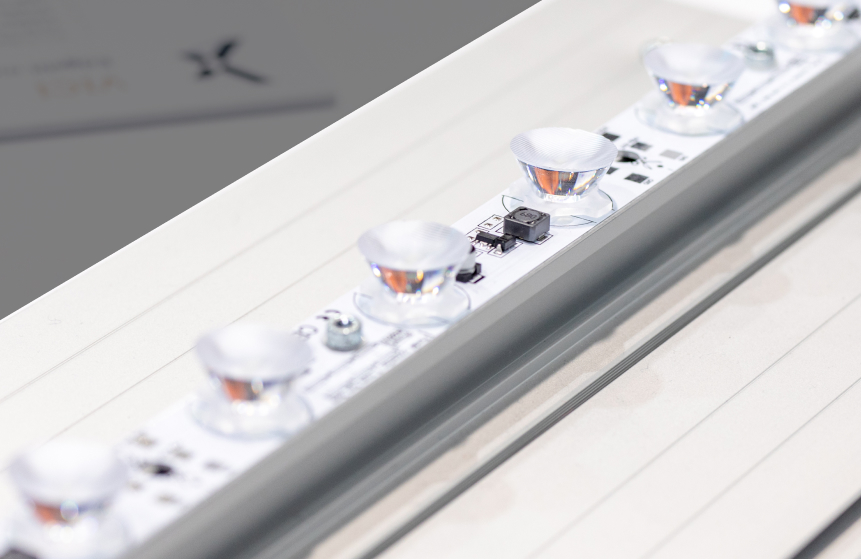

VICI Edgelit module

LONA edgelit module Plug & Play. Integrated driver.

LONA Edgelit module

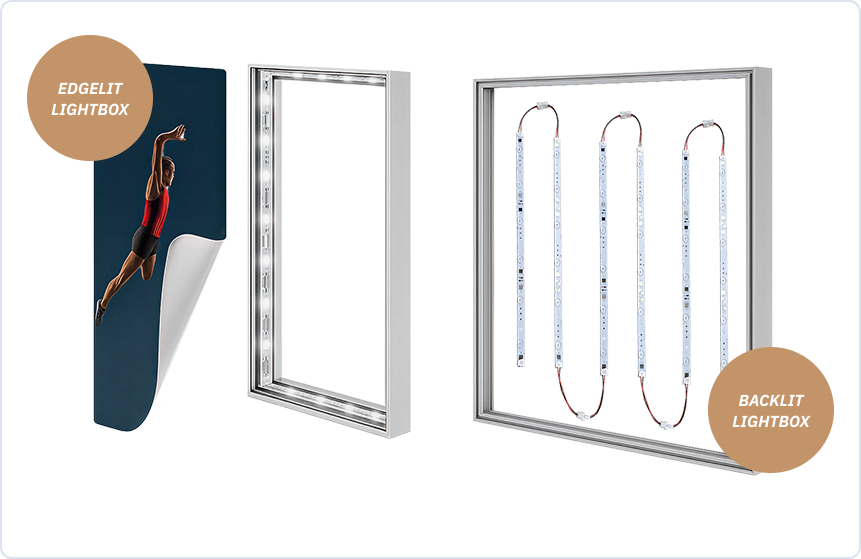

Edgelit or Backlit Modules

There are two types of lightbox modules: edgelit and backlit.

Edgelit modules illuminate the fabric from the sides. They are mounted inside the frame and direct light across the surface. The lenses create a narrow, focused beam to ensure even brightness throughout the entire lightbox.

Backlit modules are placed directly behind the fabric. Their lenses provide a wide light spread over a short distance, delivering bright and uniform illumination – even in shallow lightboxes.

Want to experience the modules yourself? Request a demo.

We offer the option to test the modules at your location. Fill out the form and we’ll get in touch to go over the available options.

REQUEST DEMO Request a quote

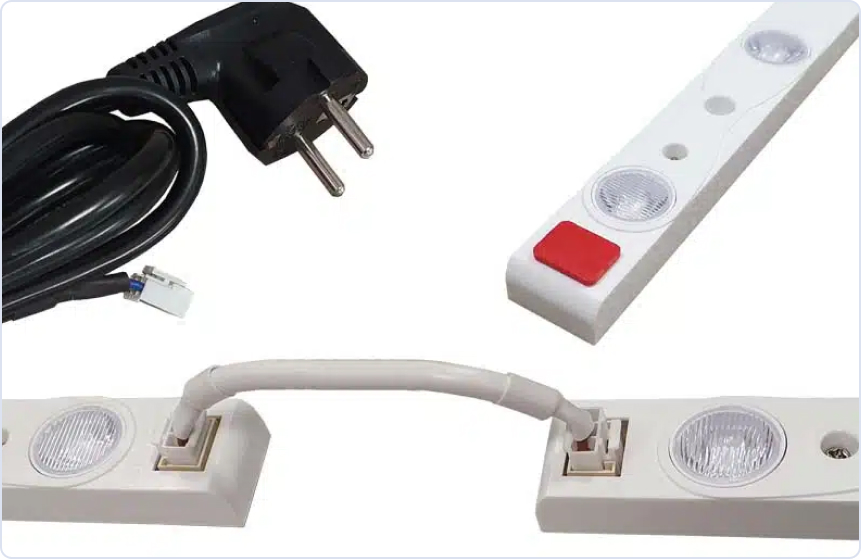

Various Accessories

A range of accessories is available for the lightbox modules, including drivers in different wattages and connection cables. Each product page clearly outlines which accessories are required for that specific module.

View all accessories

Frequently Asked Questions

The difference lies in the positioning of the lighting. With edgelit, the LEDs are located along the edges of the frame. With backlit, the LEDs are positioned directly behind the fabric, making it suitable for use in a shallow lightbox.

There are two types of connectors to link modules together:
