VICI Edgelit module

sku: LLV

Illuminate your lightbox with the powerful 6500k VICI edgelit... read more

Select connector
2-pin 3-pin
Select number of leds
3x3w 9x3w

Request a quote

Consent(Required)

Request a quote
Personal purchasing discount
Best value for money
Customer service is at your disposal

Product information

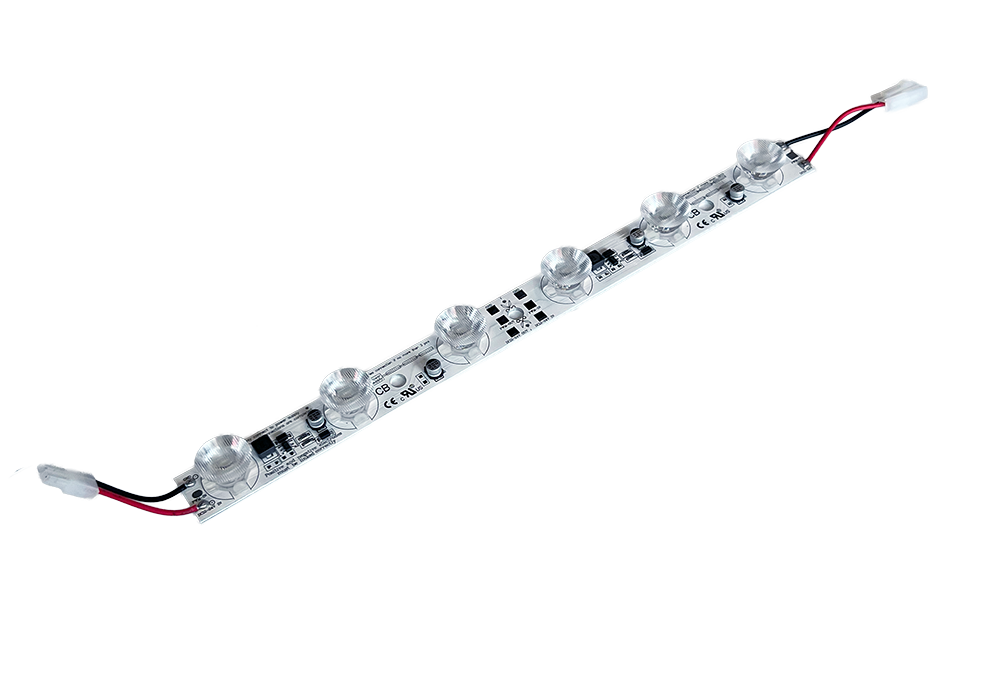

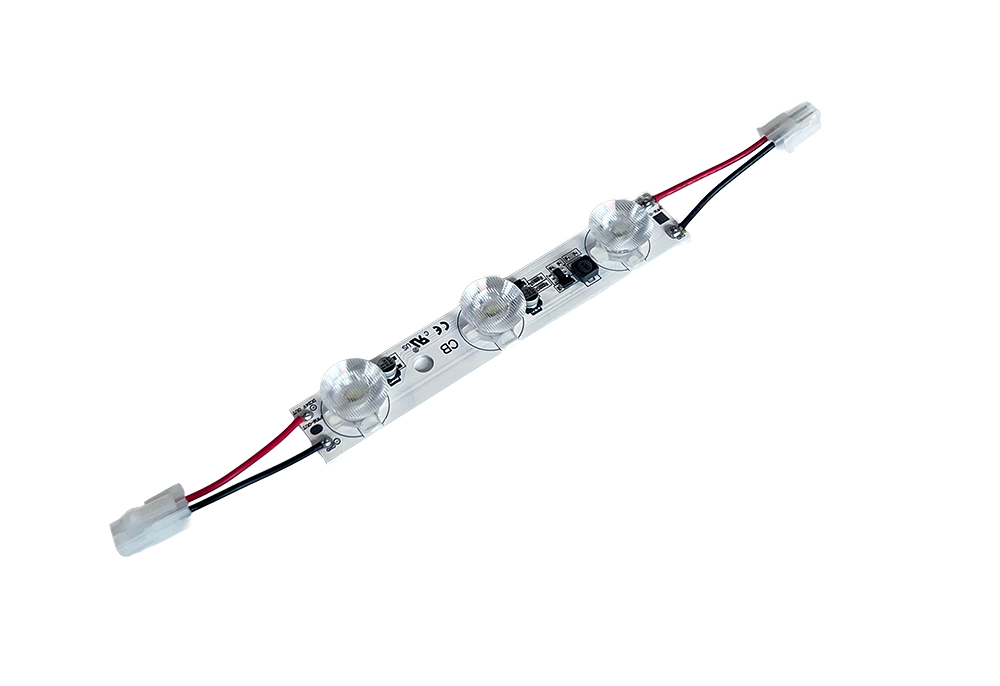

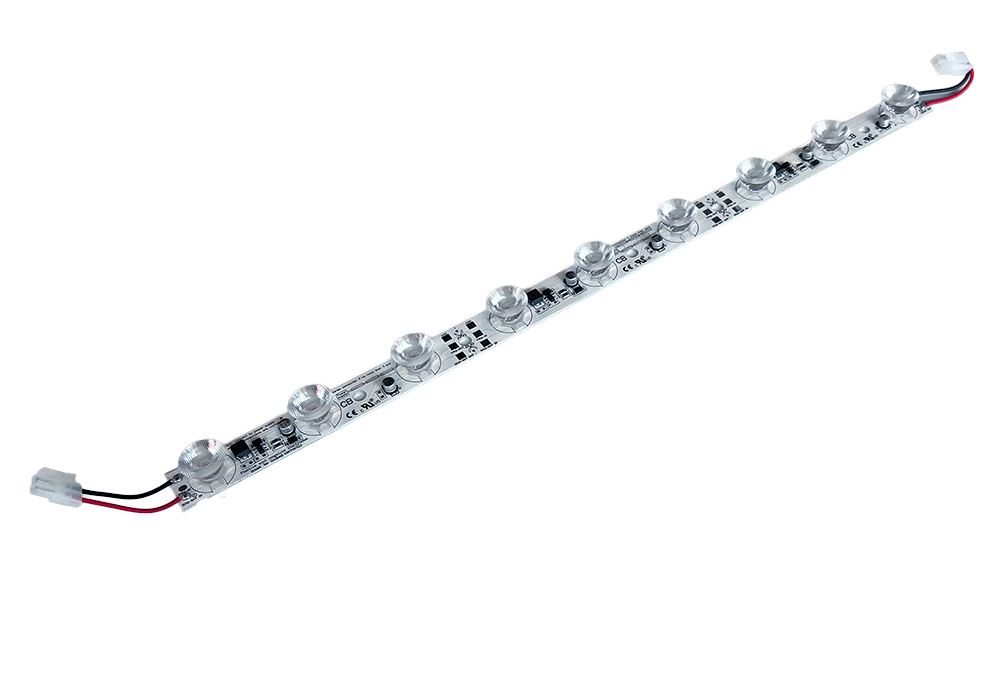

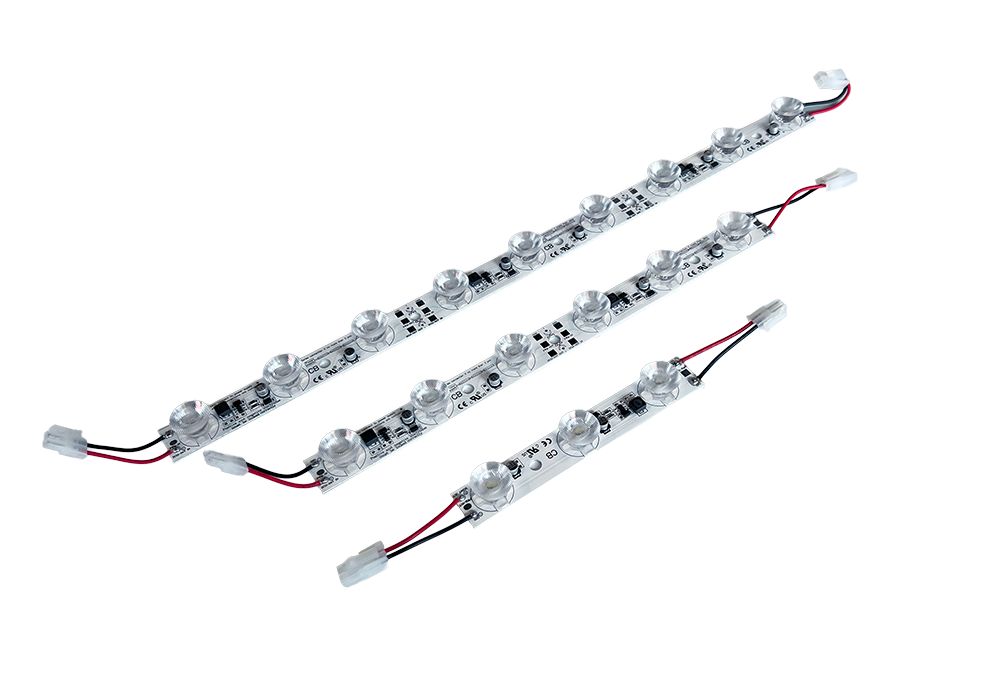

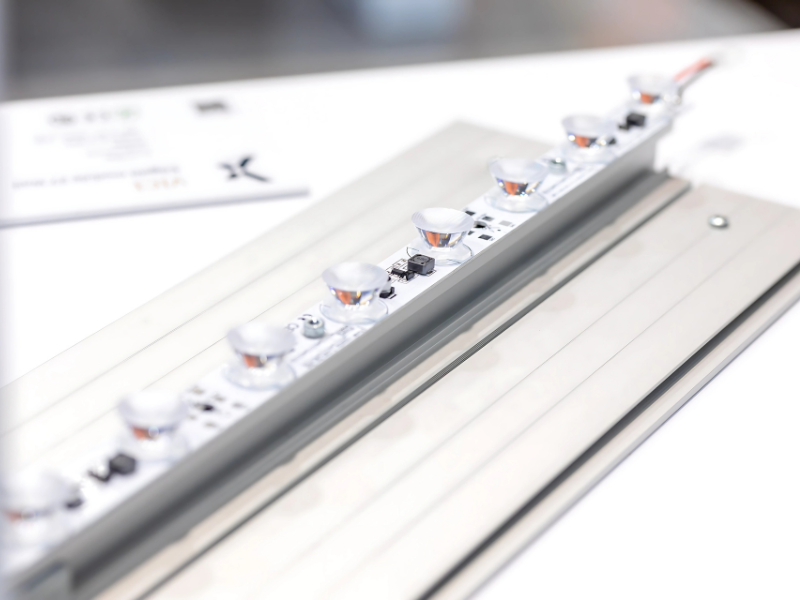

Illuminate your lightbox with the powerful 6500k VICI edgelit modules. Equipped with 9 conical lenses (27 watts) for a light output of 2,700 lumens, or a short module with 3 conical lenses (9 watts) for 900 lumens. The VICI edgelit modules can easily be connected together with the connectors, which are available as 2-pin and 3-pin options. If required, the VICI can be shortened by 9 LEDs so that 6 or 3 LEDs are used to cover the total length of the lightbox.

Specifications

Storage temperature
-20oC - +40oC
Certificates
CE, RoHS, UL
CRI
>75
Energy consumption
27W, 9W
Input Voltage
DC 24V
IP-code
IP65
Linkable
Male and Female connector
LED chip
Osram
Number of leds
3
Led type
SMD
Lamp lifetime
50000 hrs
Light source
LED
Lumen
900 lm
Beam angle
39x13
Power
15W, 9W
Color temperature
Cool white (6500k)
Total dimensions
570 x 23 x 18 mm
