YONI Backlit module

SKU: LLY

Lightbox YONI
Yoni-lightbox-module-edgelit
chevron_left
chevron_right
Lightbox YONI
Yoni-lightbox-module-edgelit
chevron_left
chevron_right
Select number of leds:
6x1w 12x1w
add_shopping_cartRequest a quote
lock_personlogin person Request an account
Maximum reach 80 mm
Mounting Backlit
Beam angle 170°
We are here for you +31 (0)85 273 64 21
5 / 5
We score a 5 based on 7 reviews

What makes the YONI Lightbox Module unique?

Designed for shallow backlit frames

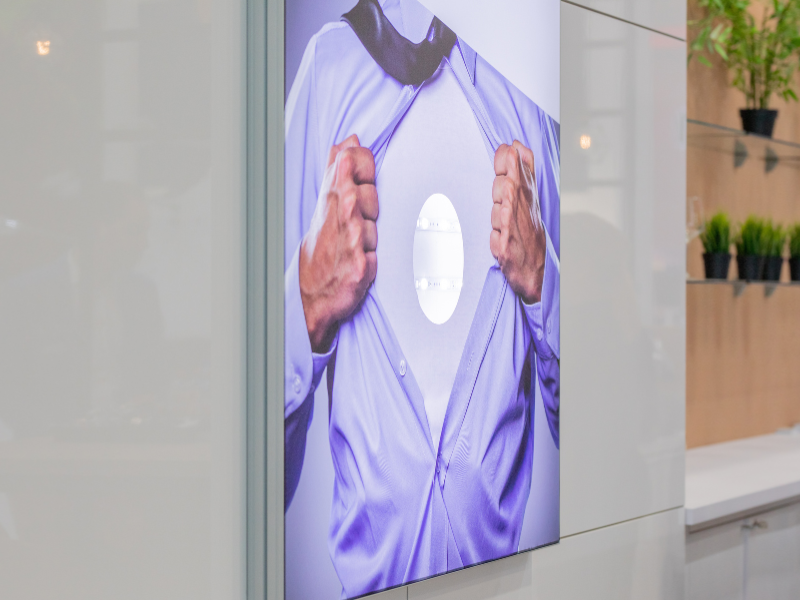

YONI is specifically developed for shallow lightboxes – ideal for exhibition walls where space is limited, without compromising on brightness.

1200 lumens with wide light distribution

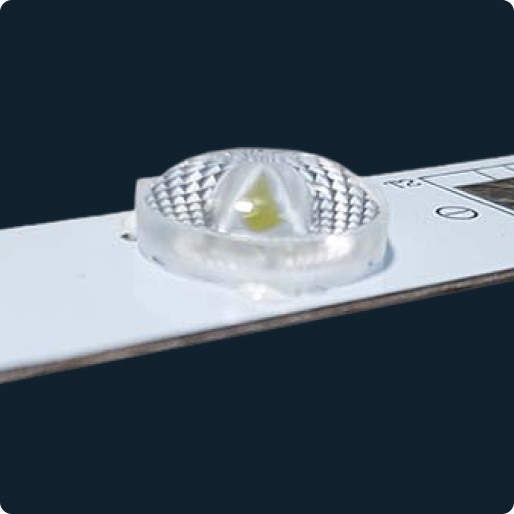

With 12 × 1 W LEDs (or 6 × 1 W) and a generous beam angle of 170°, YONI fills the entire panel area with even light – no dark corners or spots.

Two sizes for maximum flexibility
Available in 480 mm (6 LEDs) and 960 mm (12 LEDs), making it easy to match different frame widths and light intensity requirements for each project.

  • check BACKLIT
  • check EASY TO CUT TO SIZE

Accessories, what do I need?

You can easily add the accessories to your cart.

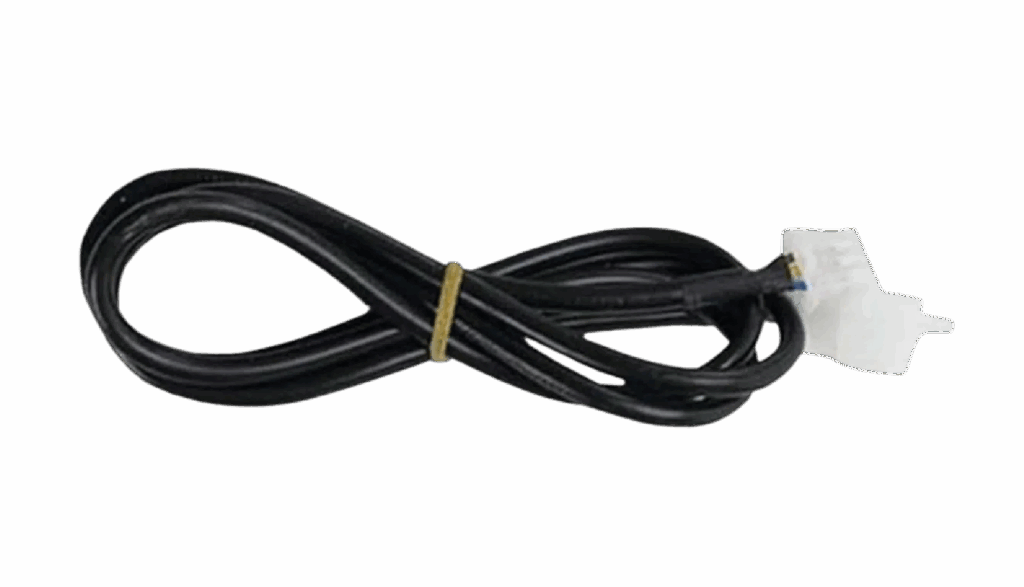

Connection cables (75 cm / 150 cm):
For bridging a longer distance between the modules.

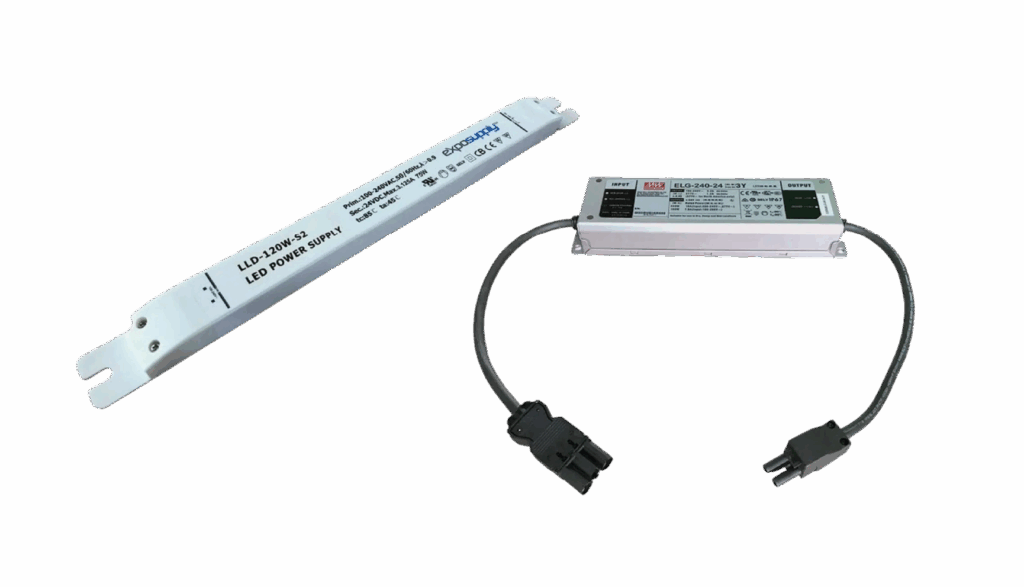

Driver Lightbox Slim (75 W / 120 W) and/or Meanwell 240 W:
Converts mains voltage to 24 volts. Select the driver with the power output that matches the number of modules you are using.

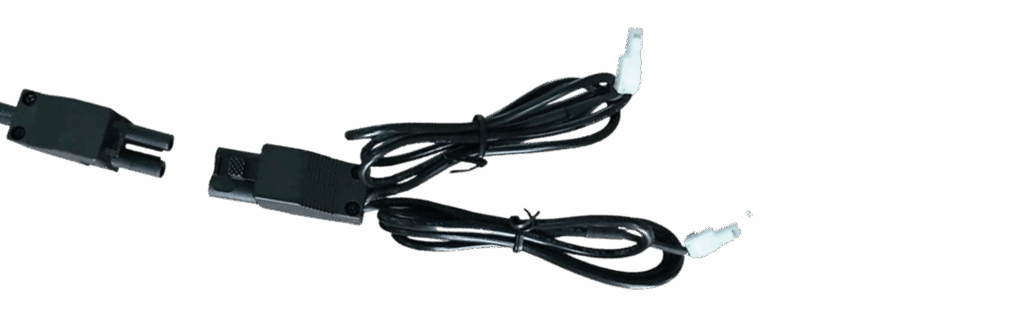

Driver connection cable duo:

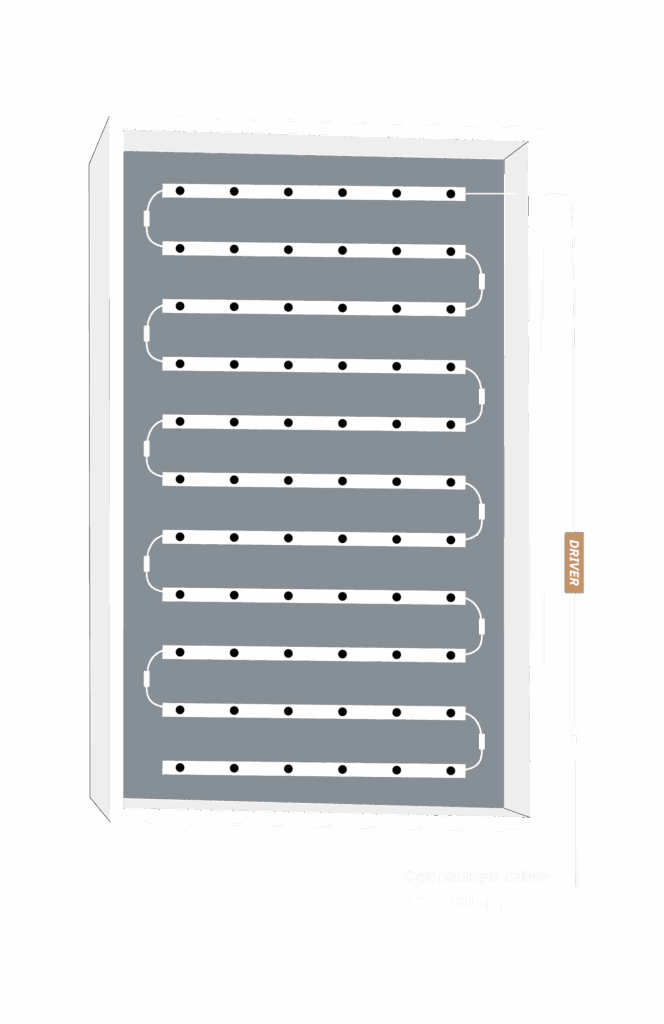

Enables the driver to be connected to two groups of modules, allowing multiple light lines to be powered by a single power source.

Product information

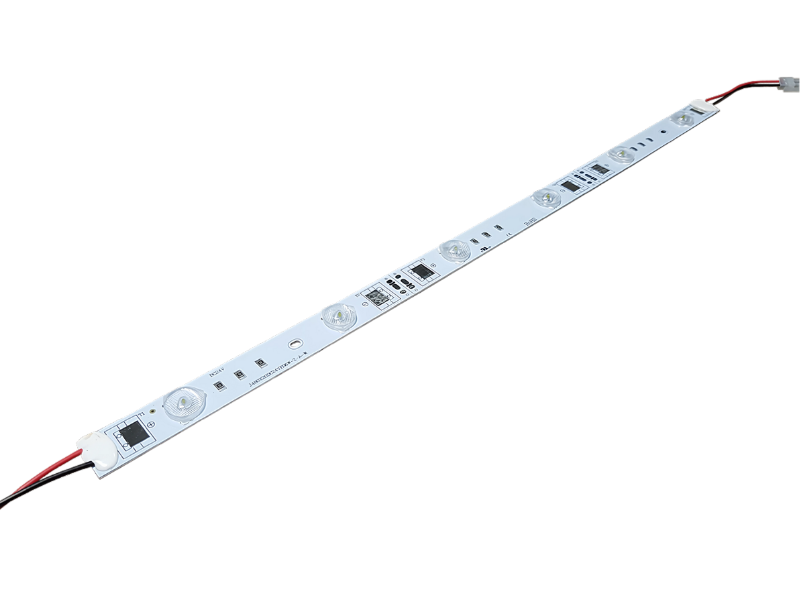

The YONI is a high-quality backlit module specifically designed for shallow lightboxes illuminated from the rear.

With a light output of 1200 lumens, YONI ensures bright and even illumination within the lightbox. The module is equipped with 12 one-watt LEDs. Thanks to an impressive 170° beam angle, the light is distributed evenly, resulting in full and vivid coverage of the display.

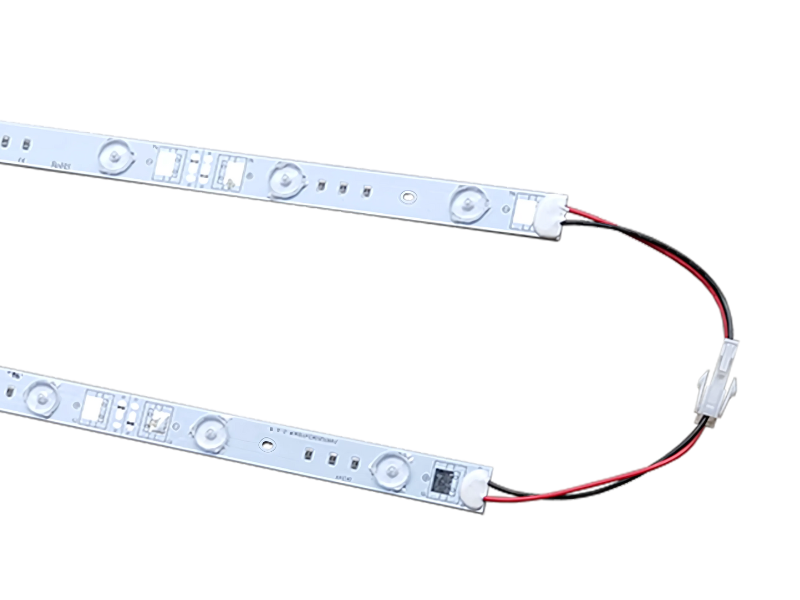

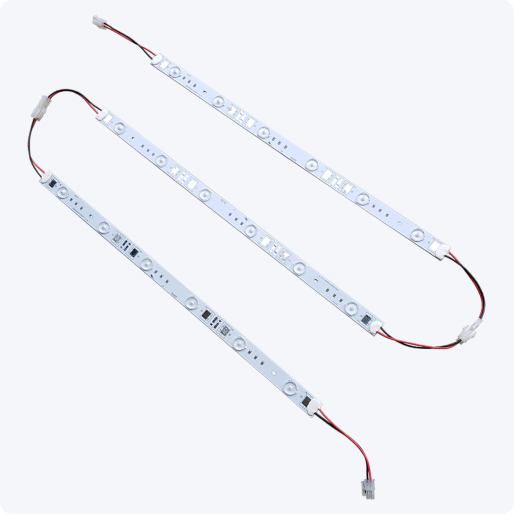

YONI requires an external driver for power supply, ensuring a reliable and stable current. Using connection cables of various lengths, you can easily link and adapt the YONI to suit your specific needs and lightbox dimensions.

YONI is available in two versions: a 12-LED version (960 mm) and a 6-LED version (480 mm), giving you the flexibility to match the size and brightness requirements of your lightbox.

With a cool white colour temperature of 7000 Kelvin, YONI delivers a bright and vibrant result – perfect for various applications.

Read more Read less

Specifications

  • Maximum reach 80 mm
  • Mounting Backlit
  • Number to daisy-chain
  • Beam angle 170°
  • Driver
  • luminous flux 1200 lm, 600 lm
  • Diepte lichtbak
  • Total dimensions 960 x 20 x 7,2 mm
  • Energy consumption 12W, 6W
  • Input Voltage DC 24V
  • Certificates CE, RoHS, UL, TÜV
  • Storage temperature -20oC - +40oC
  • CRI >75
  • IP-code IP20
  • Linkable Male and Female connector
  • LED chip SMD2835
  • Number of LEDs 12
  • LED type SMD
  • Lamp lifetime 30000 hrs
  • Light source LED
  • Power 12W, 6W
  • Color temperature Cool white (7000k)
  • Material Aluminum
  • Color Grey
  • Dimbaar
  • Weight
  • Packaging dimensions
  • Working temperatur
View all specifications View less specifications

Do you have a question about the YONI Backlit module?

Related accessories

  • connectie kabel 24V
    Connection cable Lightbox 24V
    View product
  • Driver connection cable duo
    Driver connection cable duo 24V
    View product
  • Driver LED Lightbox Meanwell 240W 24V
    Driver LED Lightbox Meanwell 240W 24V
    View product
  • Driver LED Lightbox Slim 120W 24V
    Driver LED Lightbox Slim 120W 24V
    View product
    • chevron_left
    chevron_right

    Veelgestelde vragen

    A maximum of 5 YONI modules of 12×1 W can be connected without any loss of brightness. Please refer to the specifications on the product page for more information.

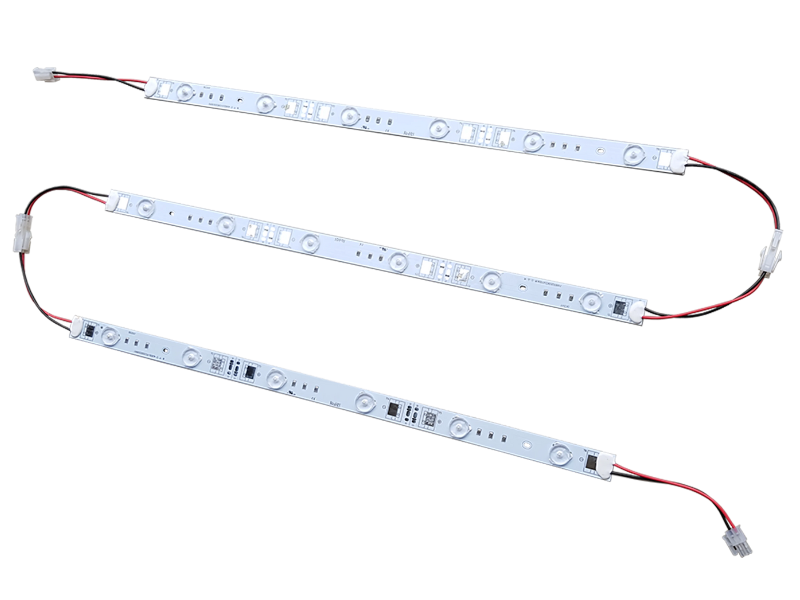

    To connect the YONI to the power supply, a driver is required. It is possible to link multiple modules together.
    If you need to bridge a large distance between several modules, connection cables are required.
    No, the YONI is not suitable for outdoor use and has an IP rating of IP20.
    For optimal results, we recommend a minimum distance of 6 cm.
    No, the lighting is not dimmable.
    This fully depends on the dimensions of the lightbox. Please contact us for personal advice.
